Project #15: Environment - AHT20 Temperature and Humidity - Mk35

Web

https://www.donluc.com/?p=4750

Facebook

https://www.facebook.com/share/v/18EcnNCjte/

YouTube

https://youtu.be/P_L0GK5nrys

DFRobot

https://learn.dfrobot.com/makelog-315141.html

Hackster

https://www.hackster.io/luc-paquin/project-15-environment-aht20-temperature-and-humidity-760f0b

#DonLucElectronics #DonLuc #FlameSensor #AHT20 #FireBeetle2ESP32E #ESP32 #Display #IoT #Project #Fritzing #Programming #Electronics #Microcontrollers #Consultant

Gravity: AHT20 Temperature and Humidity Sensor

The AHT20 is a high-precision but low-cost temperature and humidity sensor, which is equipped with an improved MEMS semiconductor capacitive humidity sensor element. It features standard I2C interface and a wide voltage supply of 2 Volt - 5 Volt, and with the simple peripheral circuit, it performs stably even in harsh environments in the measuring range of -40C ~ +85C. This sensor can be widely used for measuring the environmental temperature and humidity of home electronic equipment, the temperature and humidity of automobiles, and so on.

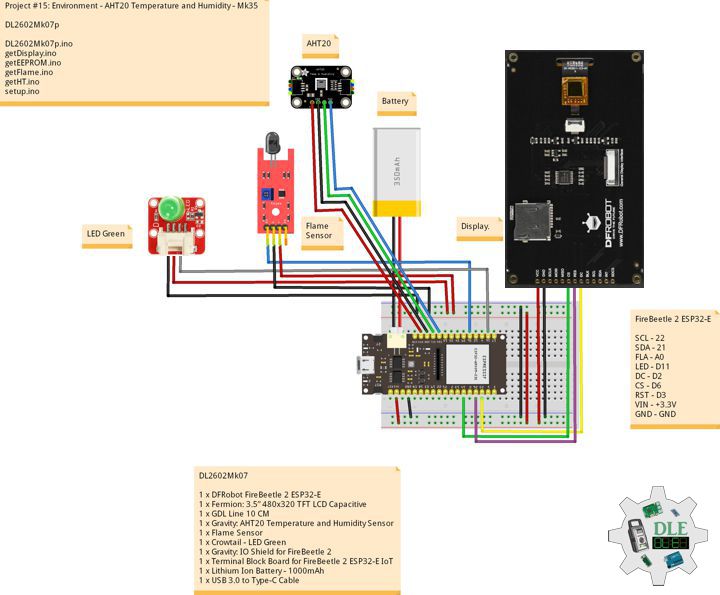

DL2602Mk07

1 x DFRobot FireBeetle 2 ESP32-E
1 x Fermion: 3.5” 480x320 TFT LCD Capacitive
1 x GDL Line 10 CM
1 x Gravity: AHT20 Temperature and Humidity Sensor
1 x Flame Sensor
1 x Crowtail - LED Green
1 x Gravity: IO Shield for FireBeetle 2
1 x Terminal Block Board for FireBeetle 2 ESP32-E IoT
1 x Lithium Ion Battery - 1000mAh
1 x USB 3.0 to Type-C Cable

DL2602Mk07p

DL2602Mk07p.ino
getDisplay.ino
getEEPROM.ino
getFlame.ino
getHT.ino
setup.ino
