Project #15: Environment - Arduino UNO R4 WiFi - Mk34

Project #15: Environment - Arduino UNO R4 WiFi - Mk34

Project #15: Environment - Arduino UNO R4 WiFi - Mk34

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Hardware Components

  • Arduino UNO R4 WiFi

    Arduino
    X 1 fenxiang
  • Adafruit SHARP Memory Display Breakout - 1.3" 168x144 Monochrome

    Adafruit
    X 1 fenxiang
  • Gravity: DHT11 Temperature & Humidity Sensor

    DFRobot
    X 1 fenxiang
  • USB Battery Pack

    X 1 fenxiang
  • USB 3.1 Cable A to C

    DFRobot
    X 1 fenxiang

Story

Project #15: Environment - Arduino UNO R4 WiFi - Mk34

Web

https://www.donluc.com/?p=4556

Facebook

https://www.facebook.com/share/v/175q7p6TQr/

YouTube

https://youtu.be/EIaP-UqBo2Q

DFRobot

https://learn.dfrobot.com/makelog-315034.html

#DonLucElectronics #DonLuc #Environment #DHT11 #ArduinoUNOR4 #Project #IoT #Fritzing #Programming #Electronics #Microcontrollers #Consultant

Arduino UNO R4 WiFi

The new Arduino UNO R4 development board UNO R4 WiFi. It runs on the Renesas RA4M1 (Arm Cortex®-M4) processor with a clock speed of 48MHz, which provides a 3x increase over the UNO R3. In addition to that, the SRAM has been upgraded from 2kB to 32kB and the flash memory has been increased from 32kB to 256kB to accommodate to more complex projects. Furthermore, in response to requests from the Arduino community, the USB port has been upgraded to USB-C and the maximum power supply voltage has been increased to 24V. The board provides a CAN bus, allowing users to minimize wiring and perform different tasks by connecting multiple extension boards. Finally, the new board also includes a 12-bit analog DAC. The WiFi version comes with an Espressif S3 WiFi module, expanding creative opportunities for makers, educators, and hobbyists alike. Based on the success of UNO R3, the UNO R4 board is the ideal prototype and learning tool for anyone. While retaining the well-known features of the UNO series, such as standard form factor, shield compatibility, 5V voltage, and robustness, new features have been added.

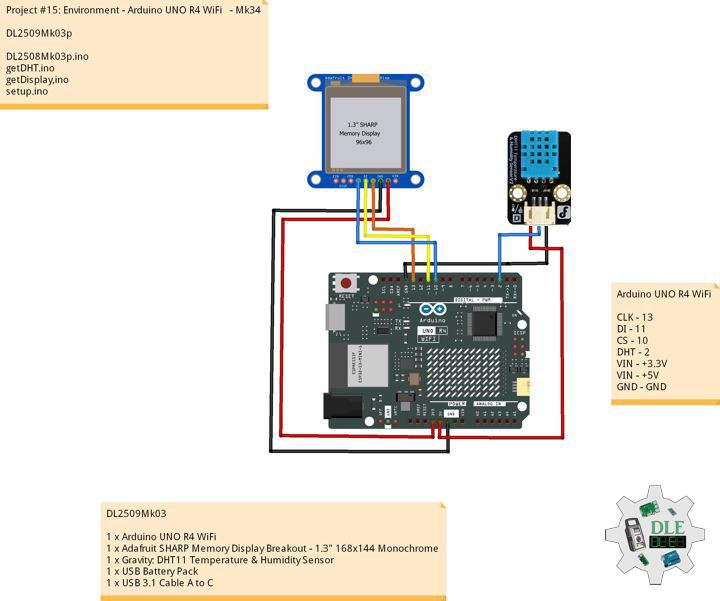

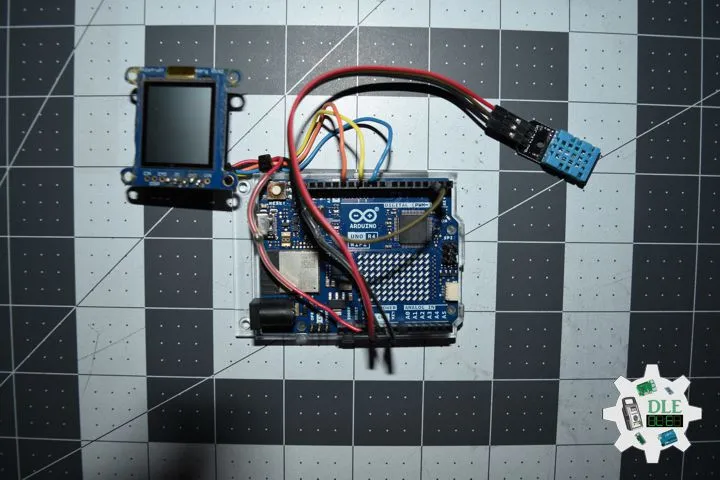

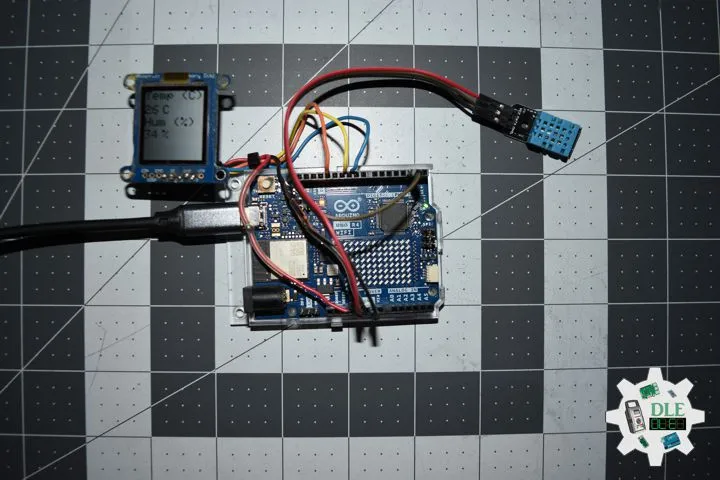

DL2509Mk03

1 x Arduino UNO R4 WiFi
1 x Adafruit SHARP Memory Display Breakout - 1.3" 168x144 Monochrome
1 x Gravity: DHT11 Temperature & Humidity Sensor
1 x USB Battery Pack
1 x USB 3.1 Cable A to C

DL2509Mk03p

DL2508Mk03p.ino
getDHT.ino
getDisplay.ino
setup.ino
