Project #28 – Sensors – Grayscale Sensor – Mk20

Web

https://www.donluc.com/?p=4634

Facebook

https://www.facebook.com/share/v/1DTgMFzWtC/

YouTube

https://youtu.be/8pRnqpLCI8c

DFRobot

https://learn.dfrobot.com/makelog-315081.html

Hackster

https://www.hackster.io/luc-paquin/project-28-sensors-grayscale-sensor-mk20-429bc6

#DonLucElectronics #DonLuc #Grayscale #FireBeetle2ESP32E #ESP32 #DFRobot #Display #IoT #Project #Fritzing #Programming #Electronics #Microcontrollers #Consultant

Gravity: Analog Grayscale Sensor

This gray scale sensor is able to measure the intensity of light from black to white.  A gray scale is also known as black-and-white, are composed exclusively of shades of gray, varying from black at the weakest intensity to white at the strongest.

The gray scale sensor for Arduino is a composition of a photocell (light-controlled variable resistor) and a integrated white LED on board aiming just front of the sensor. It's connected LED will let you compare and provide some reflective feedback to analyse gray scale light ranges. Different colors will apply but only gray scale values will be outputted. This new design includes a much better quality connector that increases life span of the sensor, better voltage range and easy to use. This is a common sensor for automatic lamps that are turned on when light is not enough.

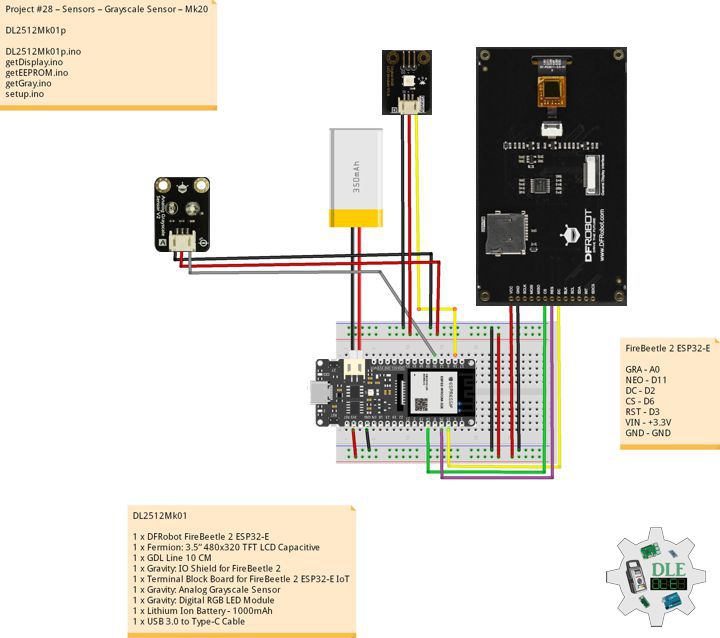

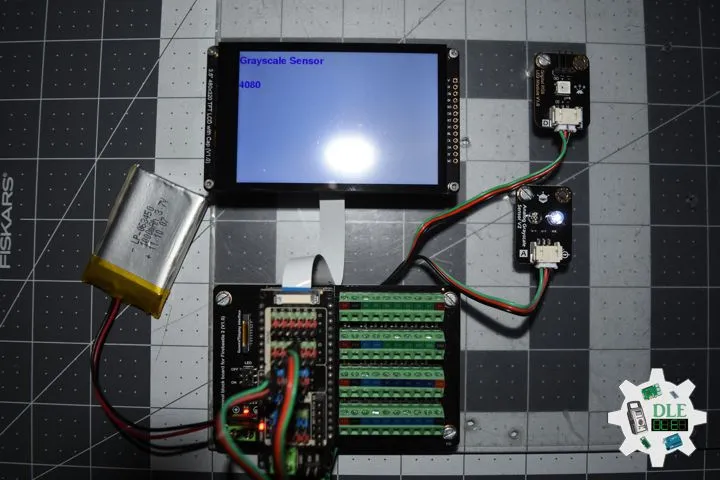

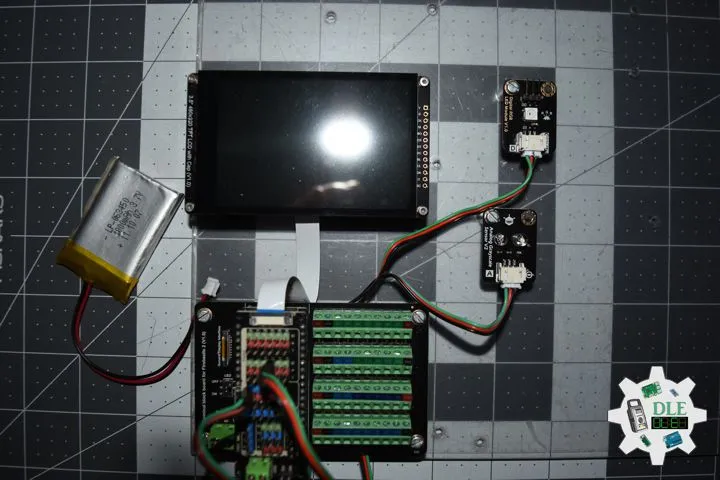

DL2512Mk01

1 x DFRobot FireBeetle 2 ESP32-E
1 x Fermion: 3.5” 480x320 TFT LCD Capacitive
1 x GDL Line 10 CM
1 x Gravity: IO Shield for FireBeetle 2
1 x Terminal Block Board for FireBeetle 2 ESP32-E IoT
1 x Gravity: Analog Grayscale Sensor
1 x Gravity: Digital RGB LED Module
1 x Lithium Ion Battery - 1000mAh
1 x USB 3.0 to Type-C Cable

DL2512Mk01p

DL2512Mk01p.ino
getDisplay.ino
getEEPROM.ino
getGray.ino
setup.ino
