Project #28 – Sensors – Touch Sensor – Mk15

Project #28 – Sensors – Touch Sensor – Mk15

Project #28 – Sensors – Touch Sensor – Mk15

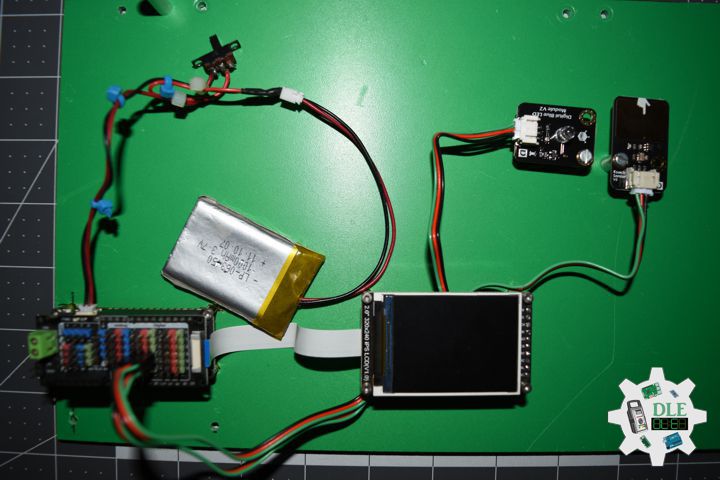

  • thumbnail-img

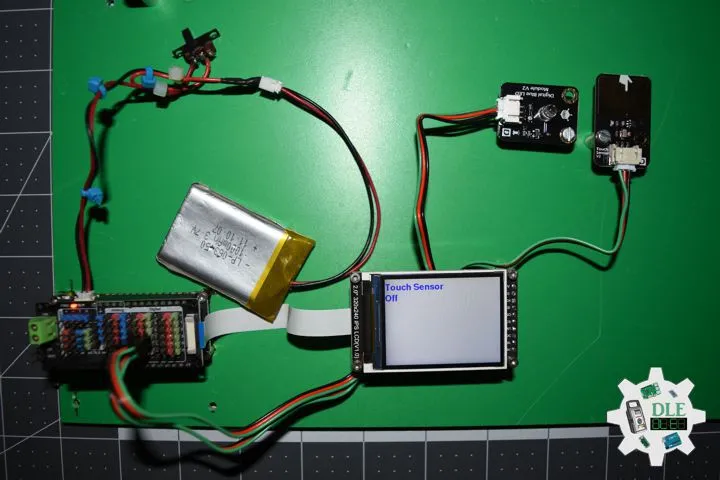

  • thumbnail-img
  • thumbnail-img


Hardware Components

  • DFRobot FireBeetle 2 ESP32-E

    DFRobot
    X 1 fenxiang
  • Fermion: 2.0" 320x240 IPS TFT LCD

    DFRobot
    X 1 fenxiang
  • GDL Line 10 CM

    DFRobot
    X 1 fenxiang
  • Gravity: IO Shield for FireBeetle 2

    DFRobot
    X 1 fenxiang
  • Gravity: Digital Capacitive Touch Sensor

    DFRobot
    X 1 fenxiang
  • Gravity: Digital Blue LED Light Module

    DFRobot
    X 1 fenxiang
  • Lithium Ion Battery - 1000mAh

    DFRobot
    X 1 fenxiang
  • Switch

    X 1
  • USB 3.0 to Type-C Cable

    DFRobot
    X 1 fenxiang

Tools, APP Software Used etc.

  • Arduino IDE

    Arduino IDE

    Arduino

Story

Project #28 – Sensors – Touch Sensor – Mk15

Web

https://www.donluc.com/?p=4584

Facebook

https://www.facebook.com/reel/828707752851766

YouTube

https://youtu.be/8MBlJXod_HQ

DFRobot

https://learn.dfrobot.com/makelog-315056.html

#DonLucElectronics #DonLuc #TouchSensor #FireBeetle2ESP32E #ESP32 #DFRobot #Display #IoT #Project #Fritzing #Programming #Electronics #Microcontrollers #Consultant

Gravity: Digital Capacitive Touch Sensor

This little sensor can "Feel" people and metal touch and feedback a High / Low voltage level. Even isolated by cloth or paper, it still can feel the touch. The sensitivity will decrease as the isolation getting thick.

Gravity: Digital Blue LED Light Module

This Blue LED light module has a shiny blue color.

DL2510Mk04

1 x DFRobot FireBeetle 2 ESP32-E
1 x Fermion: 2.0" 320x240 IPS TFT LCD
1 x GDL Line 10 CM
1 x Gravity: IO Shield for FireBeetle 2
1 x Gravity: Digital Capacitive Touch Sensor
1 x Gravity: Digital Blue LED Light Module
1 x Lithium Ion Battery - 1000mAh
1 x Switch
1 x USB 3.0 to Type-C Cable

DL2510Mk04p

DL2510Mk04p.ino
getDisplay.ino
getEEPROM.ino
getTouch.ino
setup.ino

People can contact us: http://www.donluc.com/?page_id=1927

Consultant, R&D, Electronics, IoT, Teacher and Instructor

-Programming Language
-Microcontrollers (PIC, Arduino, Raspberry Pi, Arm, Silicon Labs, Espressif, Etc...)
-IoT
-Wireless (Radio Frequency, Bluetooth, WiFi, Etc...)
-Robotics
-Automation
-Camera and Video Capture Receiver Stationary, Wheel/Tank , Underwater and UAV Vehicle
-Unmanned Vehicles Terrestrial,  Marine and UAV
-Machine Learning
-Artificial Intelligence (AI)
-RTOS
-Sensors, eHealth Sensors, Biosensor, and Biometric
-Research & Development (R & D)
-Consulting
-Etc...

Follow Us

Luc Paquin – Curriculum Vitae - 2025
https://www.donluc.com/luc/

Web: https://www.donluc.com/
Facebook: https://www.facebook.com/neosteam.labs.9/
YouTube: https://www.youtube.com/@thesass2063
Twitter: https://twitter.com/labs_steam
Pinterest: https://www.pinterest.com/NeoSteamLabs/
Instagram: https://www.instagram.com/neosteamlabs/
DFRobot: https://learn.dfrobot.com/user-10186.html
Elecrow: https://www.elecrow.com/share/sharepj/center/no/760816d385ebb1edc0732fd873bfbf13
TikTok: https://www.tiktok.com/@luc.paquin
Hackster: https://www.hackster.io/luc-paquin
LinkedIn: https://www.linkedin.com/in/jlucpaquin/

Don Luc

Code
  • DL2510Mk04p

    DL2510Mk04p_1243544038690b960b59e9b.zip
    Download(1)

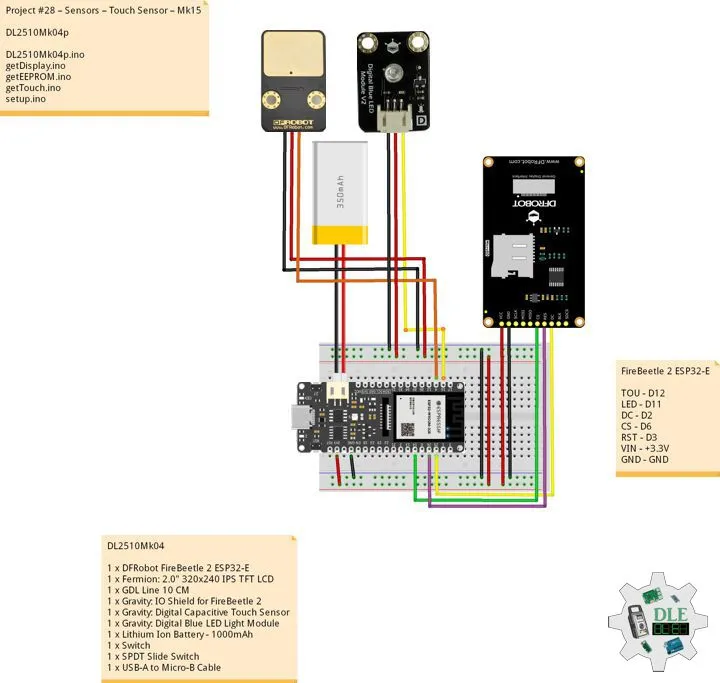

Schematic and Layout
