Project #29 - DFRobot - RTC - Mk31

Project #29 - DFRobot - RTC - Mk31

ccc ccc
Copyright Info

Attribution-ShareAlike (CC BY-SA)

Read More⇒
  151
  1
  0
cover-img

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Hardware Components

  • FireBeetle 2 ESP32-C6

    DFRobot
    X 1 fenxiang
  • Adalogger FeatherWing - RTC + SD

    Adafruit
    X 1 fenxiang
  • CR1220 3 Volt Lithium Coin Cell Battery

    X 1
  • Fermion: SHTC3 Temperature & Humidity Sensor

    DFRobot
    X 1 fenxiang
  • Fermion: 2.0" 320x240 IPS TFT LCD

    DFRobot
    X 1 fenxiang
  • GDL Line 10 CM

    DFRobot
    X 1 fenxiang
  • Gravity: Analog Soil Moisture Sensor

    DFRobot
    X 1 fenxiang
  • 3 AAA Battery Holder with On/Off Switch and 2-Pin JST

    Adafruit
    X 1 fenxiang
  • AAA Battery

    X 1
  • SparkFun Solderable Breadboard - Large

    SparkFun
    X 1 fenxiang
  • USB 3.1 Cable A to C

    DFRobot
    X 1 fenxiang

Story

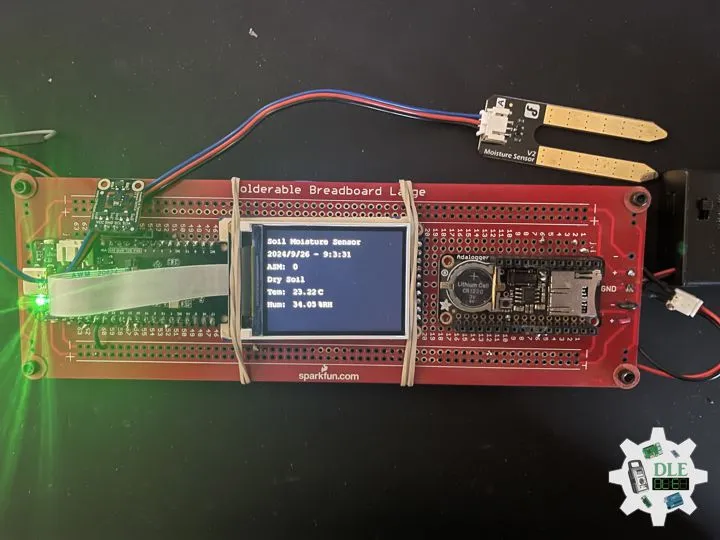

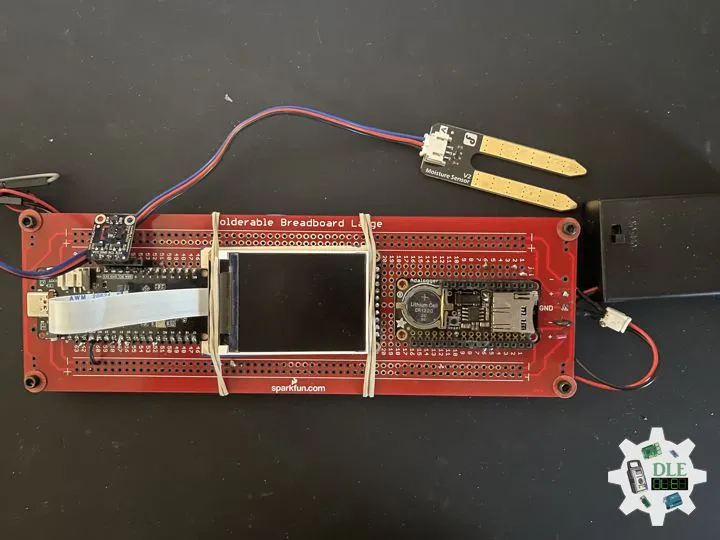

Project #29 - DFRobot - RTC - Mk31

https://www.donluc.com/?p=4152

https://youtu.be/qS-cBJ2GcK8

https://learn.dfrobot.com/makelog-314863.html

https://www.hackster.io/luc-paquin/project-29-dfrobot-rtc-mk31-a02a21

#DonLucElectronics #DonLuc #DFRobot #RTC #SD #ASM #SHTC3 #FireBeetle2ESP32C6 #Display #EEPROM #ESP32 #IoT #SparkFun #Adafruit #Arduino #Project #Fritzing #Programming #Electronics #Microcontrollers #Consultant

Real-Time Clock

A Real-Time Clock (RTC) is an electronic device, most often in the form of an integrated circuit, that measures the passage of time. Although the term often refers to the devices in personal computers, servers and embedded systems, RTCs are present in almost any electronic device which needs to keep accurate time of day.

Although keeping time can be done without an RTC, using one has benefits:

-Reliably maintains and provides current time through disruptive system states such as hangs, sleep, reboots, or if given sufficient backup power, full shutdown and hardware reassembly, without the need to have its time set again.
-Low power consumption, important when running from alternate power.
-Frees the main system for time-critical tasks.
-Sometimes more accurate than other methods.

DL2409Mk08

1 x FireBeetle 2 ESP32-C6
1 x Adalogger FeatherWing - RTC + SD
1 x CR1220 3 Volt Lithium Coin Cell Battery
1 x Fermion: SHTC3 Temperature & Humidity Sensor
1 x Fermion: 2.0" 320x240 IPS TFT LCD
1 x GDL Line 10 CM
1 x Gravity: Analog Soil Moisture Sensor
1 x 3 AAA Battery Holder with On/Off Switch and 2-Pin JST
3 x AAA Battery
1 x SparkFun Solderable Breadboard - Large
1 x USB 3.1 Cable A to C

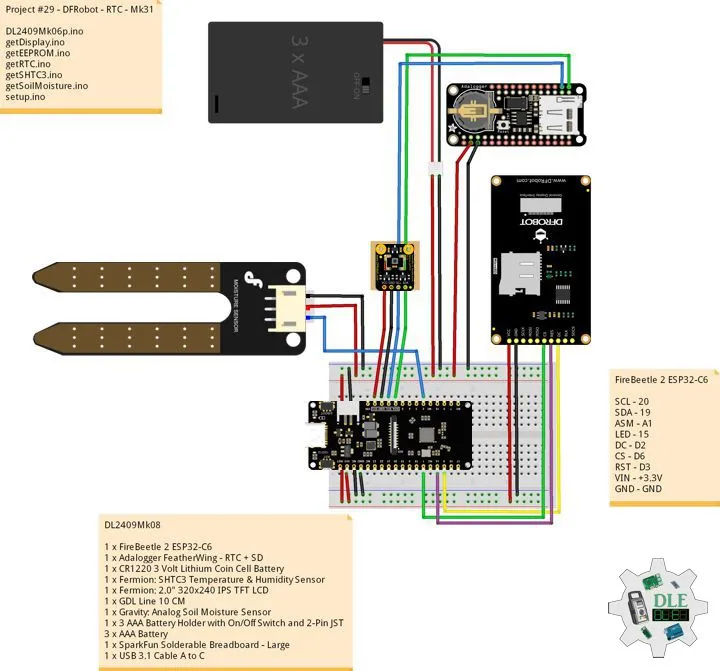

FireBeetle 2 ESP32-C6

SCL - 20
SDA - 19
ASM - A1
LED - 15
DC - D2
CS - D6
RST - D3
VIN - +3.3V
GND - GND

DL2409Mk08p

DL2409Mk08p.ino
getDisplay.ino
getEEPROM.ino
getRTC.ino
getSHTC3.ino
getSoilMoisture.ino
setup.ino
