RP2040 development board

The development board uses the RP2040 microcontroller, you can order your own pcb as well as components to solder yourself.

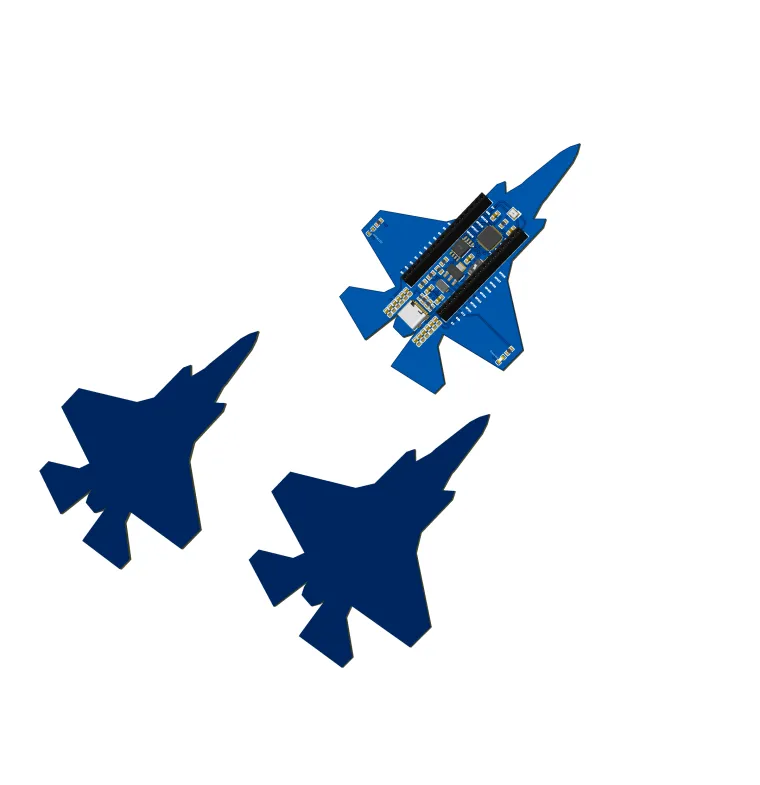

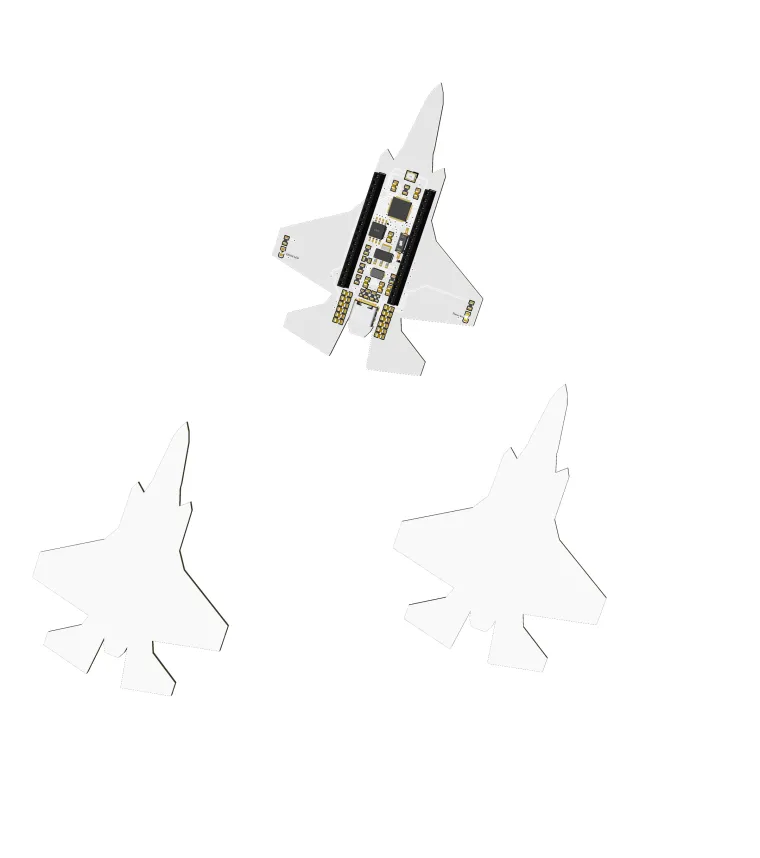

RP2040 development board

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Hardware Components

  • capacitor 10uf 0805

    X 3

  • capacitor 1uf 0805

    X 2

  • capacitor 100nf 0805

    X 11

  • capacitor 15pf 0805

    X 2

  • Resistor 5.1k 0603

    X 2

  • Resistor 27.4 ohm 0805

    X 2

  • Resistor 1k 0805

    X 3

  • Resistor 10k 0805

    X 1

  • Resistor 130 ohm 0805

    X 1

  • Resistor 30 ohm 0805

    X 1

  • Resistor 200 ohm 0805

    X 1

  • Resistor 120 ohm 0805

    X 1

  • Reset switch

    X 1

  • Logic switch

    X 1

  • Voltage regulator NCP1117STAT3G 3v3

    X 1

  • Flash memory W25Q128JVSIQ

    X 1

  • 12MHz Crystal Oscillator XL2EL89CMI-111YLC-12M

    X 1

  • 2.54mm header

    X 2

  • Usb type c

    X 1

  • Green SMD LED 0805

    X 1

  • Pink SMD led 0805

    X 1

  • RP2040 microcontroller

    X 1

Story

This is a pcb project that I designed myself, you can order your own pcb with 0805 size components so you can easily solder by hand. The rp2040 microcontroller is quite powerful so it can completely meet your needs. The files shared in this project are enough for you to order yourself.

Edit: This is a 4 layer pcb

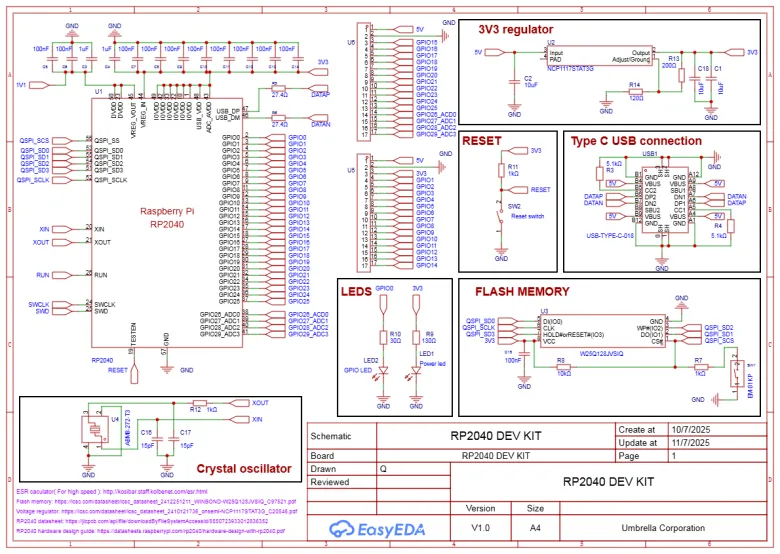

Schematic and Layout

  • geber file

    Gerber_PCB1_2025-07-16__58986124168787f526b896.zip
    Download(6)

  • schematic file

    Download(5)

  • image file

    Download(6)
Topic
View All
#Pcb, Hardware
License: CERN Open Hardware Licence
