Uksed: Eurorack 2-channel audio input module

Bring output from other synthesizers, samplers, or any audio source to Eurorack signal levels. Ready for endless creative processing.

Uksed: Eurorack 2-channel audio input module

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Hardware Components

  • HDR-IDC-2.54-2X8P

    BOOMELE(Boom Precision Elec)
    X 1

  • PJ-3001F

    Tayda Electronics
    X 4

  • CAP CER 100nF 25V X7R 0402

    FH
    X 2

  • CAP ALUM 10uF ±20% 250V SMD

    Honor Elec
    X 2

  • CL05A105KA5NQNC

    X 2

  • CC0402JRNPO8BN330

    YAGEO
    X 2

  • 1206W4F1002T5E

    UNI-ROYAL
    X 2

  • FRC1206J102 TS

    FOJAN
    X 2

  • TL072CDR

    TI
    X 1

  • RD901F-40-15K-B100K

    ALPHA
    X 2

Tools, APP Software Used etc.

  • Autodesk Fusion 360

Story

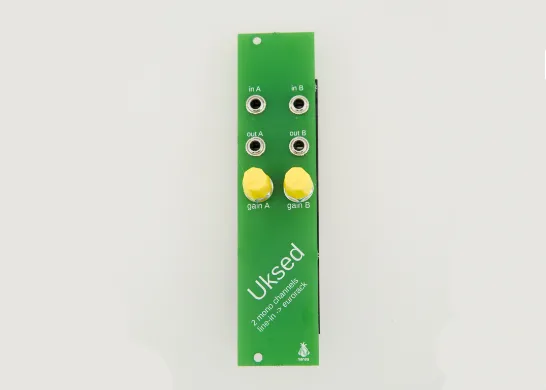

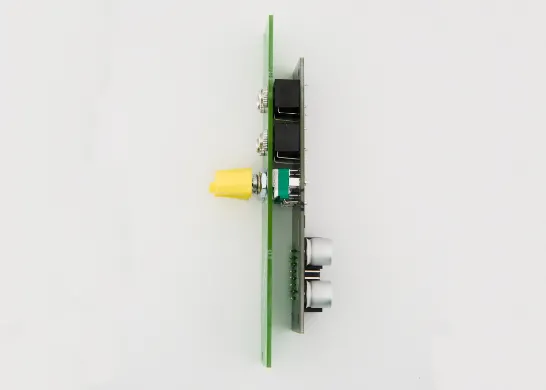

Dual mono input module that brings external audio sources into your Eurorack system. Amplifies line-level signals (synthesizers, samplers, drum machines) to Eurorack levels (10Vpp).



Features:

  • 2 independent mono input channels
  • Converts standard audio (~3.5Vpp) to Eurorack levels (-5V to +5V)
  • Essential for integrating external gear with your modular system
  • Perfect for processing external synthesizers, samplers, or any audio source through your Eurorack effects and modules.



Front Panel: Gerber file for PCB-based front panel available in the "Schematic and Layout" section for download.

Schematic and Layout

  • Gerber PCB

    Uksed_v47_2025-08-21_144484454368b01bde2f95a.zip
    Download(0)

  • Gerber Front Panel

    PCB_Panel_v3_2025-08-21_163774860868b01bf85caf4.zip
    Download(0)

  • Schematic

    Uksed_Schematic_106269191568b01c027cfd0.pdf
    Download(0)

  • BOM

    BOM_and_designator_30966201468b01c515a6dc.zip
    Download(0)
Topic
View All
#DIY #audio #modular synth #eurorack #synthesizer #synth #music
License: Attribution-ShareAlike (CC BY-SA)
