USB - RS485 Converter

This project uses STM8S microcontroller with an RS485 transceiver allowing transmission via RS485 buses.

USB - RS485 Converter

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Hardware Components

  • STM8S003F3P6TR

    STM
    X 1

  • ISL83491IBZ

    Renesas / Intersil
    X 1

  • AMS1117-3.3V

    X 1

  • HX MINI 5P 4J hanxia

    X 1

  • 12M20P2/49US YIC

    X 1

Tools, APP Software Used etc.

  • Kicad

    fenxiang

Story

USB - RS485 Converter

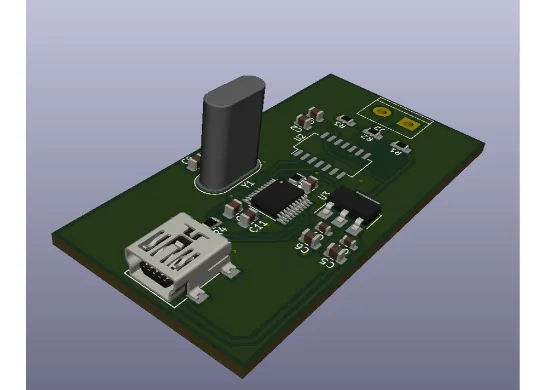

This project uses the STM8S microcontroller with an RS485 transceiver allowing transmission via RS485 buses. Communication with the computer is performed via the USB bus using V-USB libraries.

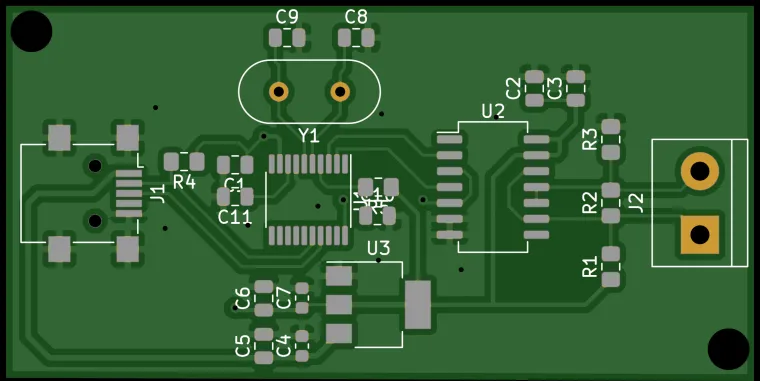

Schematic and Layout

  • Schematic

    STM_VUSB_RS485_1034025483672383b11d9e0.pdf
    Download(4)
Topic
View All
#USB RS485 #Bridge
License: Attribution-GPL License

USB - RS485 Converter

This project uses STM8S microcontroller with an RS485 transceiver allowing transmission via RS485 buses.
