Chaos Crew Melty Control Board

A simple board for controlling meltybrain robots, uses OpenMelt firmware.

Chaos Crew Melty Control Board

  • thumbnail-img
  • thumbnail-img


Story

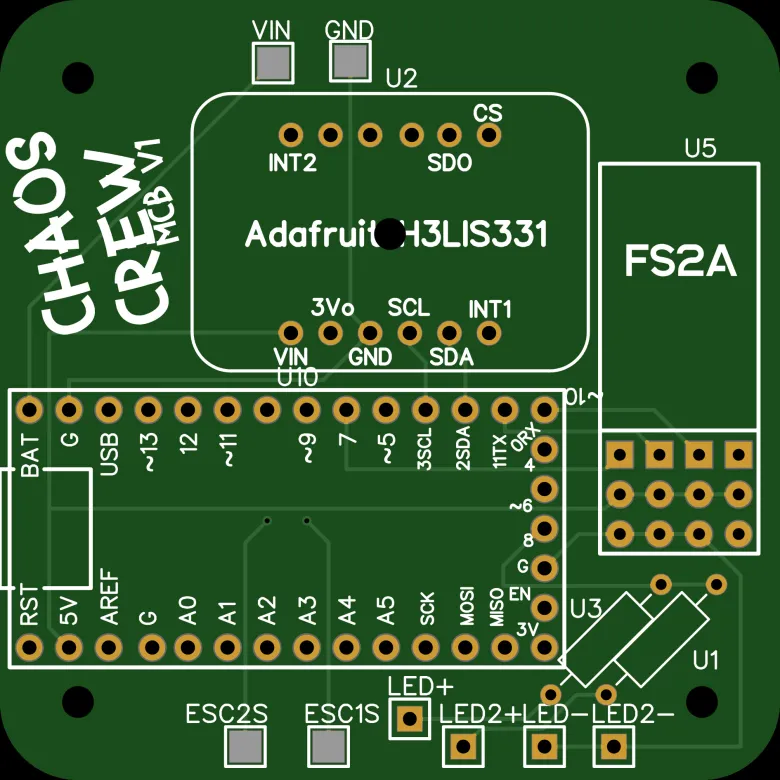

This is a simple board for the adafruit h3lis331 accelerometer, fs2a reciever, and an adafruit ItsyBitsy 32u4-5V. Also required are two resistors matched for your color of LED.

Topic
View All
License: Attribution-NonCommercial (CC BY-NC)

Chaos Crew Melty Control Board

A simple board for controlling meltybrain robots, uses OpenMelt firmware.
