Linear Keyboard

The Linear Keyboard provides the amazing feel of a full mechanical keyboard and allows you to take its small form factor on the go!

Linear Keyboard

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Tools, APP Software Used etc.

  • Kicad

    fenxiang

  • Autodesk Fusion 360

Story

This is a split keyboard. It is connected with usb-c as well as has two 0.91" OLEDs right on top of the two Pi Pico's. The keyboard has 18 keys on each side plus an extra 3 per side for thumb keys, overall 42 keys with RGB LEDs for each key. When I first saw an ergonomic keyboard, I was amazed by how people were able to take a simple keyboard and form it to be easier and more comfortable to use. I decided I wanted to try my hand at making a keyboard and I wanted it to be unique and not just a basic mechanical keyboard. This led me to make a split ergonomic wired keyboard. I had to learn KiCad and Fusion to do this project, which was difficult, but the outcome was amazing!

Code

  • Code/Firmware

    https://github.com/Jyst7/Linear_Keyboard/tree/main/Firmware
    View

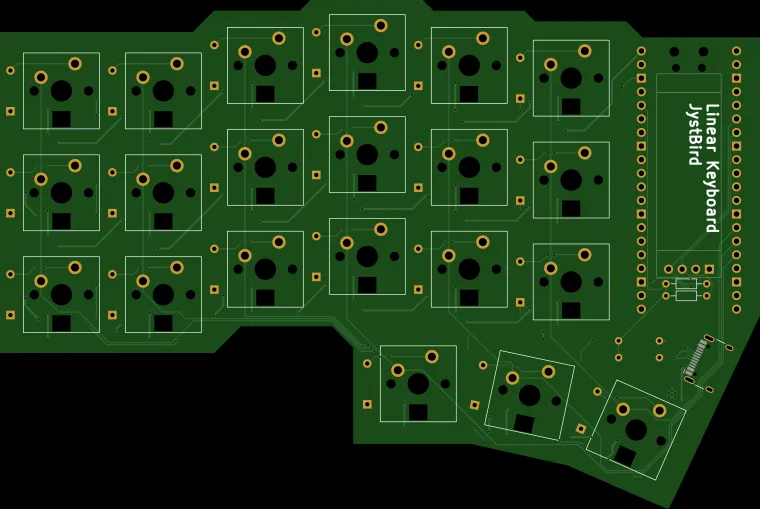

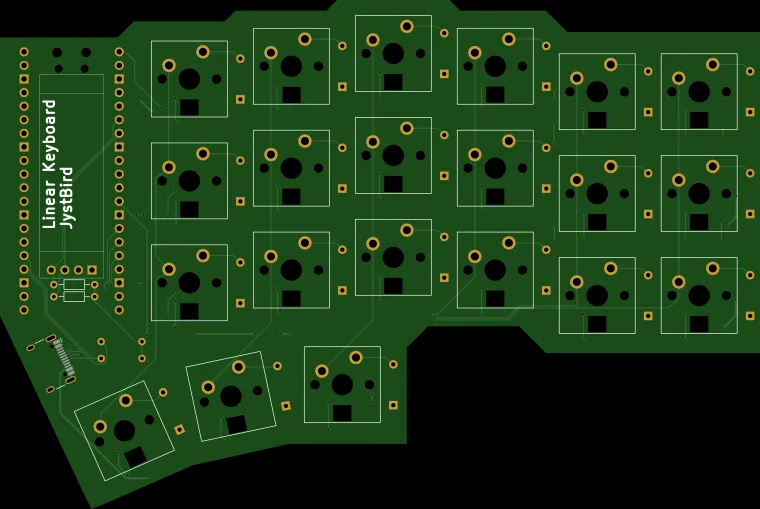

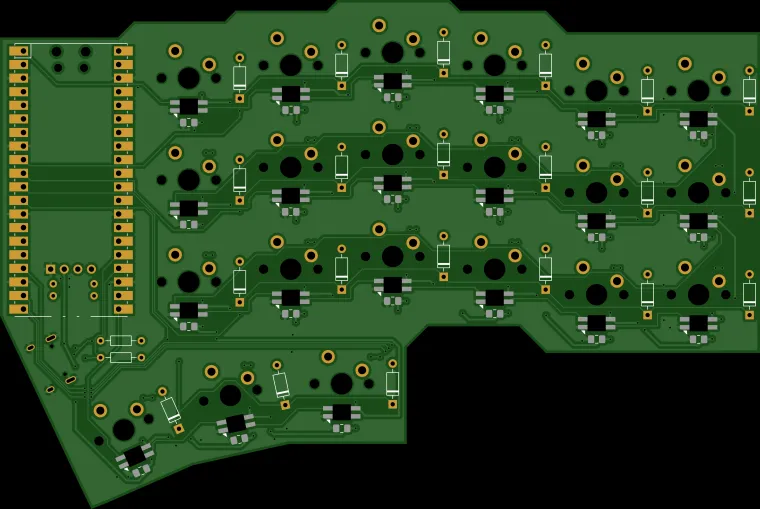

Schematic and Layout

  • Images/README

    https://github.com/Jyst7/Linear_Keyboard
    View

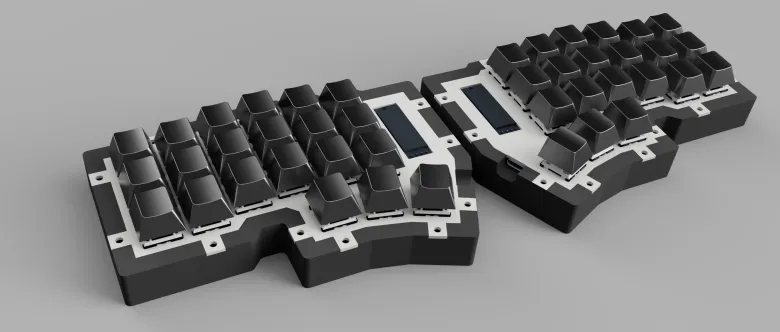

CAD-Custom parts and enclosures
Topic
View All
#Keyboard #3D-Print #PCB #Split Keyboard #Mechanical #Engineering #KiCad #Fusion 360
License: Attribution-MIT License
