Project #15: Environment - KY-039 - Mk32

Project #15: Environment - KY-039 - Mk32

Project #15: Environment - KY-039 - Mk32

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Story

Project #15: Environment - KY-039 - Mk32

Web

https://www.donluc.com/?p=4482

Facebook

https://www.facebook.com/share/v/16cNykhZMa/

YouTube

https://youtu.be/FeEtZ-cDvOY

Facebook

https://www.facebook.com/share/p/1DriapJ85G/

DFRobot

https://learn.dfrobot.com/makelog-314994.html

#DonLucElectronics #DonLuc #KY039 #ESP32 #Arduino #EEPROM #Display #Elecrow #Project #Patreon #Electronics #Microcontrollers #IoT #Fritzing #Programming #Consultant

KY-039 Heartbeat Sensor Module

This project uses bright infrared (IR) LED and a phototransistor to detect the pulse of the finger, a red LED flashes with each pulse.
Pulse monitor works as follows: The LED is the light side of the finger, and phototransistor on the other side of the finger, phototransistor used to obtain the flux emitted, when the blood pressure pulse by the finger when the resistance of the phototransistor will be slight changed.

We chose a very high resistance resistor R1, because most of the light through the finger is absorbed,it is desirable phototransistor sensitive enough.Resistance can be selected by experiment to get the best results. The most important is to keep the shield stray light into the phototransistor. For home lighting that is particularly important because the lights at home mostly based 50HZ or 60HZ fluctuate, so faint heartbeat will add considerable noise.

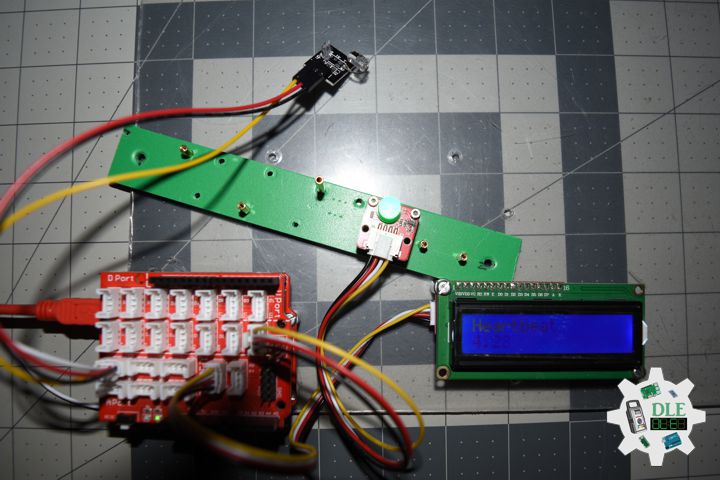

DL2506Mk04

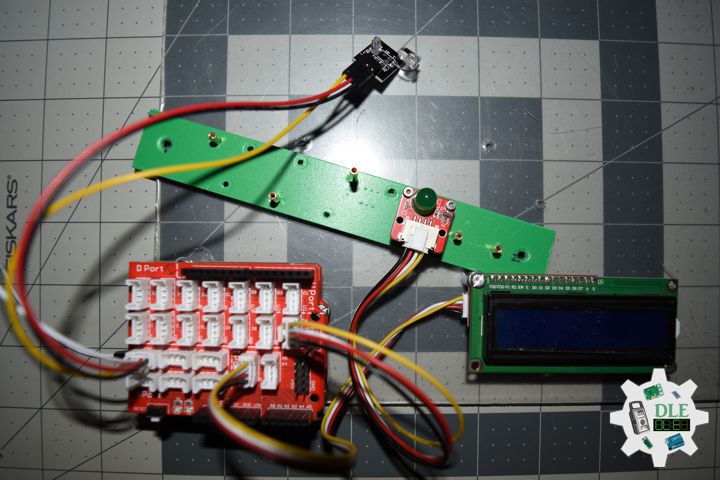

1 x Crowduino Uno - SD
1 x Crowtail - Base Shield
1 x Crowtail - I2C LCD
1 x KY-039 Heartbeat Sensor Module
1 x Crowtail - LED(Green)
1 x USB Battery Pack
1 x USB Mini-B Cable

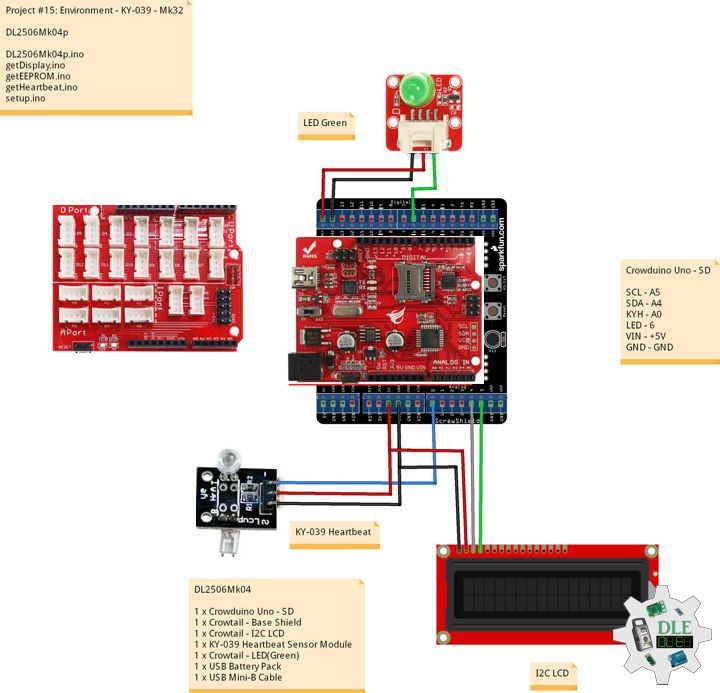

Crowduino Uno - SD

SCL - A5
SDA - A4
KYH - A0
LED - 6
VIN - +5V
GND - GND

DL2506Mk04p

DL2506Mk04p.ino
getDisplay.ino
getEEPROM.ino
getHeartbeat.ino
setup.ino
