LED Memory Game Arduino Shield

LED Memory Game Arduino Shield

  • thumbnail-img
  • thumbnail-img


Tools, APP Software Used etc.

  • Kicad

    fenxiang
  • Arduino IDE

    Arduino IDE

    Arduino
    fenxiang

Story

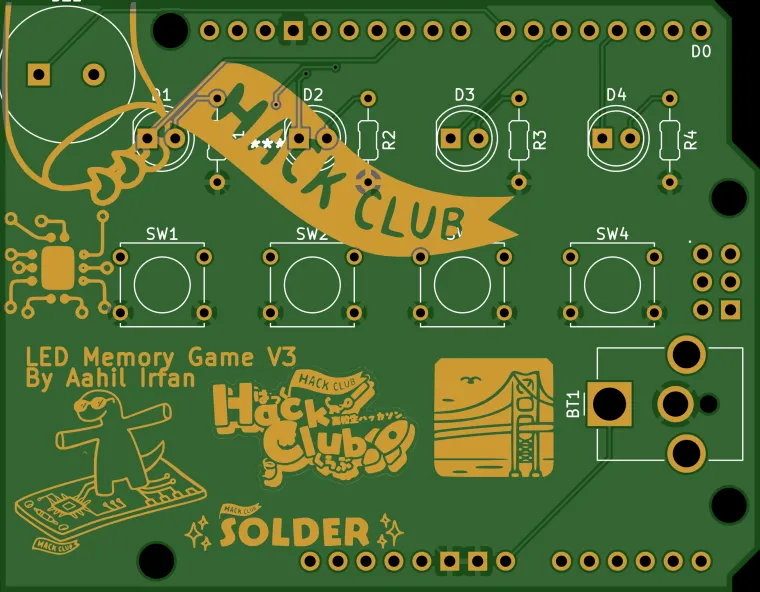

This project is a simple LED Memory Game Arduino Shield that has 4 LEDs, 4 Buttons, Resistors, a Buzzer/Vibration Motor, and more!



It lights up LEDs in a random sequence and there's a time limit for the user to put in the sequence, if the time limit is exceeded or wrong button is pressed then the game is over. Each level the sequence increases by 1 extra step. The buzzer/vibration motor also works in different frequencies on each led or button press.

Topic
View All
#Arduino #LED #LED Memory Game #DIY
License: Attribution-ShareAlike (CC BY-SA)
