Project #29 - DFRobot - Soil Moisture Sensor - Mk28

Project #29 - DFRobot - Soil Moisture Sensor - Mk28

ccc ccc
Copyright Info

Attribution-ShareAlike (CC BY-SA)

Read More⇒
  494
  3
  0
cover-img

  • thumbnail-img
  • thumbnail-img
  • thumbnail-img


Hardware Components

  • DFRobot FireBeetle 2 ESP32-E

    DFRobot
    X 1 fenxiang
  • Gravity: Analog Soil Moisture Sensor

    DFRobot
    X 1 fenxiang
  • Adafruit MicroSD card breakout board+

    Adafruit
    X 1 fenxiang
  • MicroSD 2 GB

    X 1
  • Fermion: MEMS Smoke Gas Detection Sensor

    DFRobot
    X 1 fenxiang
  • Fermion: MEMS Methane CH4 Gas Detection Sensor

    DFRobot
    X 1 fenxiang
  • Fermion: MEMS VOC Gas Detection Sensor

    DFRobot
    X 1 fenxiang
  • Fermion: SHTC3 Temperature and Humidity Sensor

    DFRobot
    X 1 fenxiang
  • Fermion: 2.0" 320x240 IPS TFT LCD

    DFRobot
    X 1 fenxiang
  • GDL Line 10 CM

    DFRobot
    X 1 fenxiang
  • Lithium Ion Battery - 1000mAh

    DFRobot
    X 1 fenxiang
  • Switch

    X 1
  • USB 3.1 Cable A to C

    DFRobot
    X 1 fenxiang

Tools, APP Software Used etc.

  • Arduino IDE

    Arduino IDE

    Arduino

Story

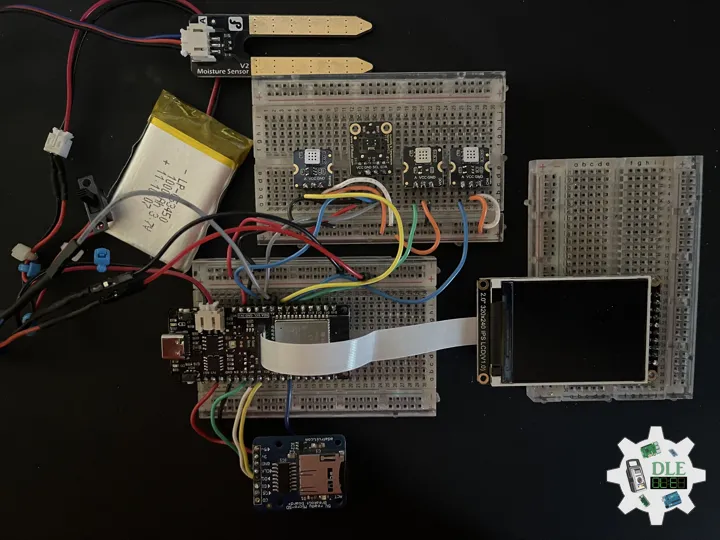

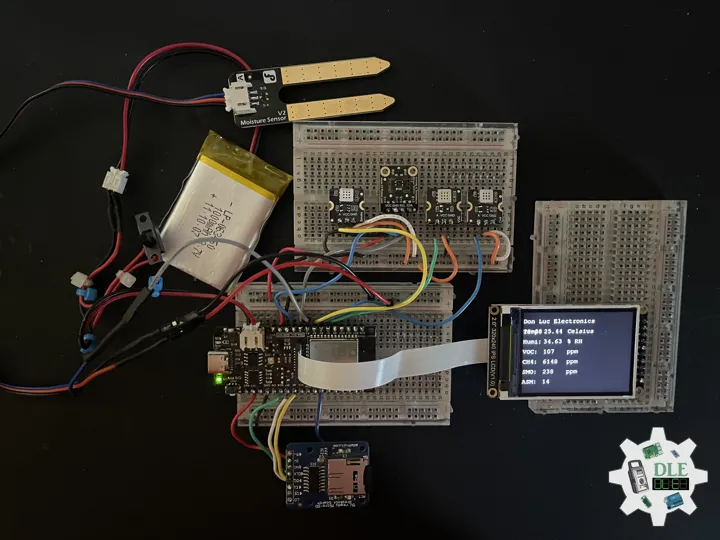

Project #29 - DFRobot - Soil Moisture Sensor - Mk28

https://www.donluc.com/?p=4114

https://youtu.be/sK3CWqz-KLE

https://edu.dfrobot.com/makelog-314852.html

https://www.hackster.io/neosteam-labs/project-29-dfrobot-soil-moisture-sensor-mk28-25fa4e

#DonLucElectronics #DonLuc #DFRobot #ASM  #Smoke #CH4 #VOC #SHTC3 #SD #FireBeetle2ESP32E #Display #EEPROM #ESP32 #IoT #Arduino #Project #Fritzing #Programming #Electronics #Microcontrollers #Consultant

Gravity: Analog Soil Moisture Sensor

A soil moisture sensor can read the amount of moisture present in the soil surrounding it. It's an ideal for monitoring an urban garden, or your pet plant's water level. This is a must have component for a IOT garden / Agriculture. The new soil moisture sensor uses Immersion Gold which protects the nickel from oxidation. Electroless nickel immersion gold has several advantages over more conventional surface platings such as HASL, including excellent surface planarity, good oxidation resistance, and usability for untreated contact surfaces such as membrane switches and contact points. This soil moisture arduino sensor uses the two probes to pass current through the soil, and then it reads that resistance to get the moisture level. More water makes the soil conduct electricity more easily, while dry soil conducts electricity poorly. This sensor will be helpful to remind you to water your indoor plants or to monitor the soil moisture in your garden.

DL2409Mk02

1 x DFRobot FireBeetle 2 ESP32-E
1 x Gravity: Analog Soil Moisture Sensor
1 x Adafruit MicroSD card breakout board+
1 x MicroSD 2 GB
1 x Fermion: MEMS Smoke Gas Detection Sensor
1 x Fermion: MEMS Methane CH4 Gas Detection Sensor
1 x Fermion: MEMS VOC Gas Detection Sensor
1 x Fermion: SHTC3 Temperature and Humidity Sensor
1 x Fermion: 2.0" 320x240 IPS TFT LCD
1 x GDL Line 10 CM
1 x Lithium Ion Battery - 1000mAh
1 x Switch
1 x USB 3.1 Cable A to C

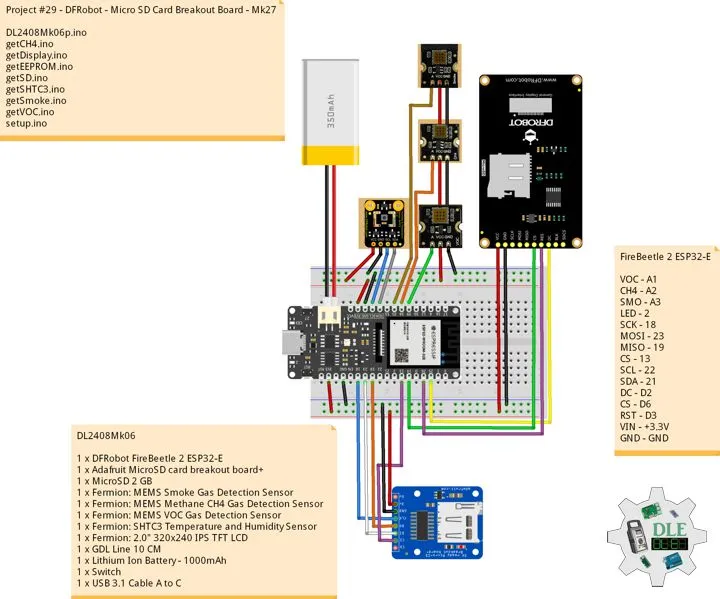

FireBeetle 2 ESP32-E

VOC - A1
CH4 - A2
SMO - A3
ASM - A4
LED - 2
SCK - 18
MOSI - 23
MISO - 19
CS - 13
SCL - 22
SDA - 21
DC - D2
CS - D6
RST - D3
VIN - +3.3V
GND - GND

DL2409Mk02p

DL2409Mk02p.ino
getCH4.ino
getDisplay.ino
getEEPROM.ino
getSD.ino
getSHTC3.ino
getSmoke.ino
getSoilMoisture.ino
getVOC.ino
setup.ino
