Project #30 - UNIHIKER - RTC - Mk18

Web

https://www.donluc.com/?p=4534

Facebook

https://www.facebook.com/share/v/1LwLcaZ6jH/

YouTube

https://youtu.be/9o3vZ9Jhkfk

DFRobot

https://learn.dfrobot.com/makelog-315015.html

#DonLucElectronics #DonLuc #RTC #UNIHIKER #Display #IoT #Project #DFRobot #Fritzing #Programming #Electronics #Microcontrollers #Consultant

Gravity I2C SD2405 RTC module

We're glad to introduce a new member in Gravity family: Gravity I2C SD2405 RTC module. This is an extremely accurate I2C Real Time Clock (RTC) with crystal compensation, inner chargeable battery. The SD2405AL is available in industrial temperature ranges.

The SD2405AL is dual power supply system. When the primary power supply goes down to an assigned value or resumes from low power, the system can switch between the primary power supply and battery automatically. Even there is no external power, it can still work for 5~8 years, 1uA ultra-low power consumption (inner battery.

The SD2405AL can generates various periodic interrupt clock pulses lasting for long period, and three alarm interrupts can be made by year, month, date, days of the week, hours, and minutes, seconds. It also provides a selectable 32.768 KHz~1Hz clock output for an external MCU. The product incorporates a time trimming circuit that adjusts the clock with higher precision by adjusting any errors in crystal oscillator frequencies based on signals from the CPU. A 12-bytes general SRAM is implemented in the SD2405AL.

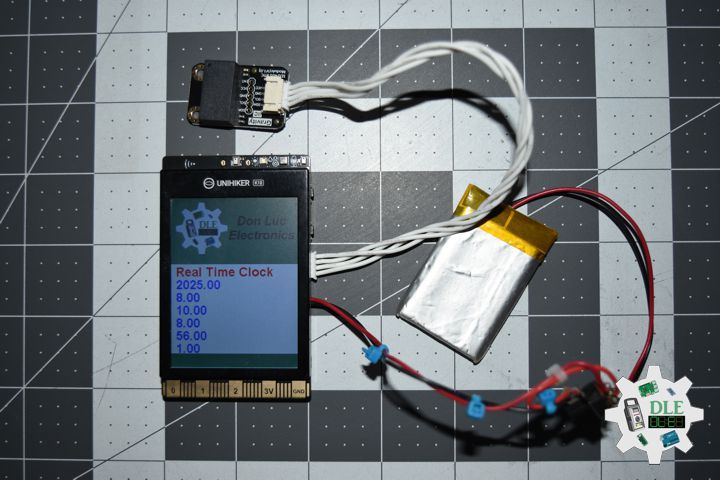

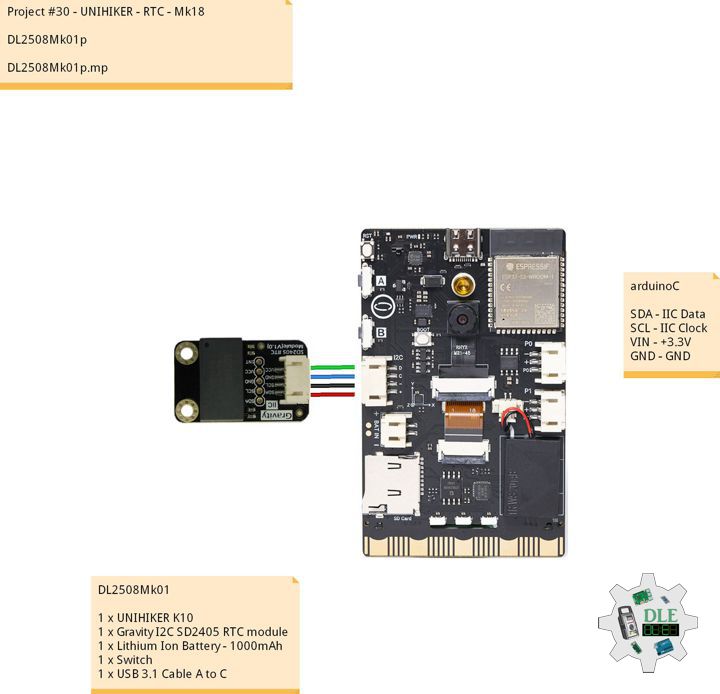

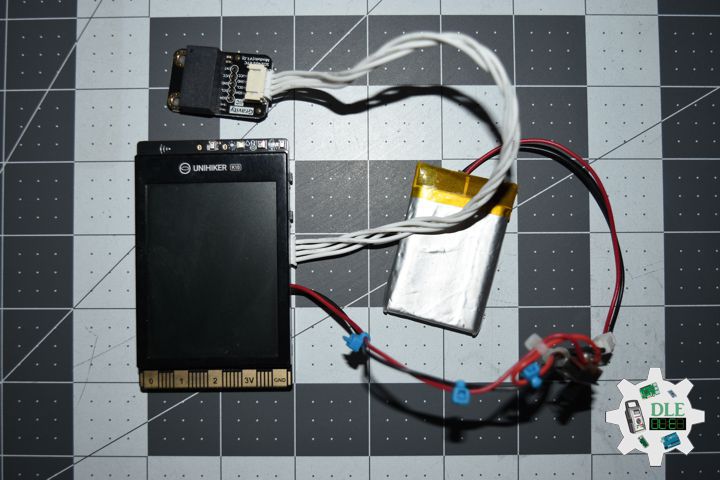

DL2508Mk01

1 x UNIHIKER K10
1 x Gravity I2C SD2405 RTC module
1 x Lithium Ion Battery - 1000mAh
1 x Switch
1 x USB 3.1 Cable A to C

DL2508Mk01p

DL2508Mk01p.mp
