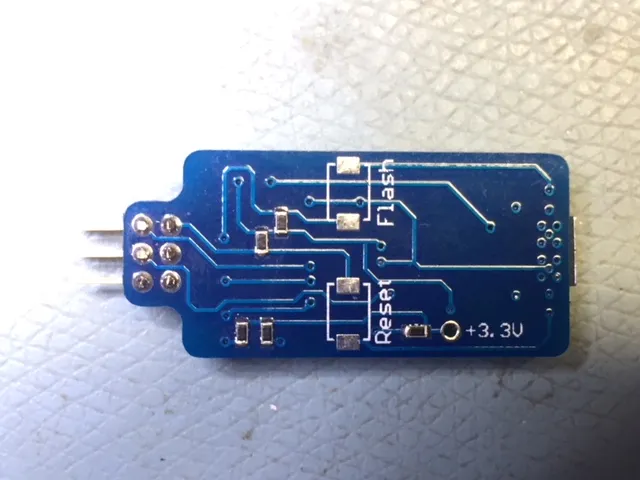

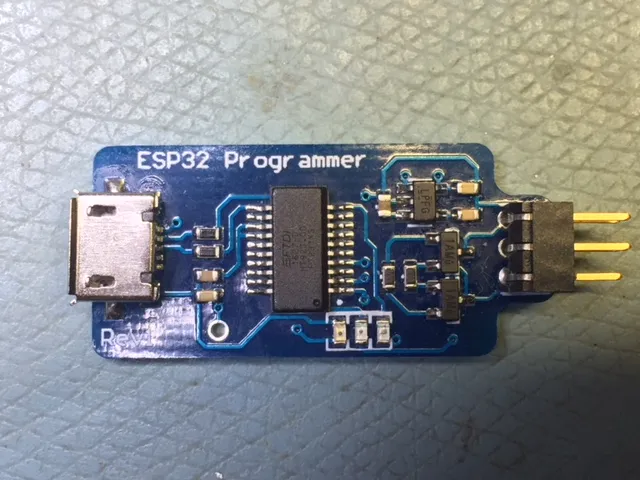

This is an FTDI board used to program ESP32 designs. The pushbuttons on the bottom are not necessary and were designed to be used when programming an ESP32 with microPython or NodeMCU. ( This is GitHub account: https://github.com/mike-rankin where you will explore more excellent projects. He is a good DIY maker who designs custom ESP32 IoT projects using Altium Designer, Arduino IDE and Fusion360. Welcome everyone to follow.)
Parts List, Schematic And Parts Map, Gerber are all on github: https://github.com/mike-rankin/ESP32_Programmer
