Crowtail- I2C Color Sensor

Description

This module is based on the color sensor TCS3414CS with digital output I2C. Based on the 8*2 array of filtered photodiodes and 16-bits analog-to-digital converters, you can gain the color chromaticity of ambient light or the color of objects. Of the 16 photodiodes, 4 have red filters, 4 have green filters, 4 have blue filters and 4 have no filter(clear). With the synchronization input pin, external pulsed light source can provides precise synchronous conversion control.

Model: CT0067ICS

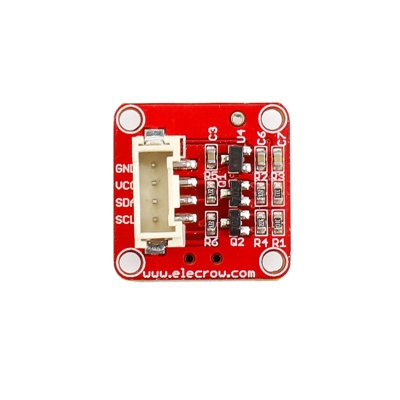

Crowtail- I2C Color Sensor2.JPG

Specification

  • Crowtail compatible interface
  • 16-Bit digital output with I 2C at 400 kHz
  • SYNC Input Synchronizes Integration Cycle to Modulated Light Sources
  • Operating temperature range -40°C to 85°C
  • Programmable interrupt function with User-Defined Upper and lower threshold settings
  • Dimensions(mm):20.0(L)x20.0(W)x13.6(H)

Usage

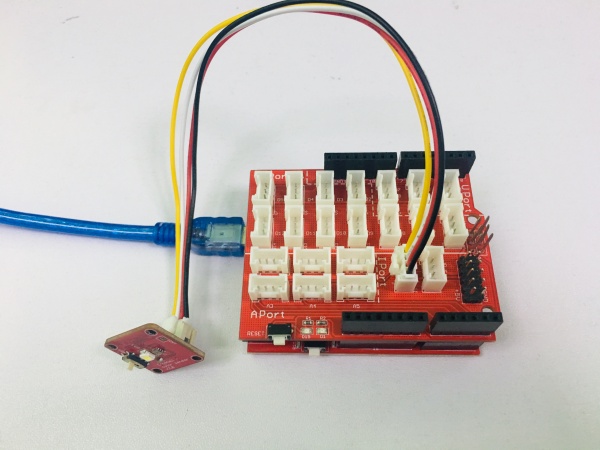

Crowtail- I2C Color Sensor1.jpg

1.Download Crowtail- I2C Color Sensor library; Unzip and put it in the libraries file : ..\arduino-1.0\libraries;

2.Open "colorview" example via the path: File --> Examples --> Adafruit TCS34725 -->colorview.

#include <Wire.h>
//#include <math.h>
#include <IICColorSensor.h>

void setup()
{
    Serial.begin(9600);
    Wire.begin();
}

void loop()
{
    int red, green, blue;
    IICColorSensor colorSensor;
    colorSensor.ledStatus = 1;                          // When turn on the color sensor LED, ledStatus = 1; When turn off the color sensor LED, ledStatus = 0.
    while(1)
    {
        colorSensor.readRGB(&red, &green, &blue);       //Read RGB values to variables.
        delay(300);
        Serial.print("The RGB value are: RGB( ");
        Serial.print(red,DEC);
        Serial.print(", ");
        Serial.print(green,DEC);
        Serial.print(", ");
        Serial.print(blue,DEC);
        Serial.println(" )");
        colorSensor.clearInterrupt();
    }
}

3.Upload it into your Arduino board and have a test.
