Crowduino Mega2560


Elecrow Crowduino Mega2560 board, almost the same usage and performance with the Arduino Mega2560 but with some difference on the power circuit to ensure the power. Based on the ATmega2560. The Elecrow Mega2560 has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. With more IOs and larger flash than the Crowduino Uno_SD or Crowduino 328, the Crowduino Mega2560 would be helpful in applications that needs more IOs or larger flash such as in 3D printer projects. It also comes with a type-B USB wire to enable you start the project once you get it in hand.

Model: ACA2560MEG

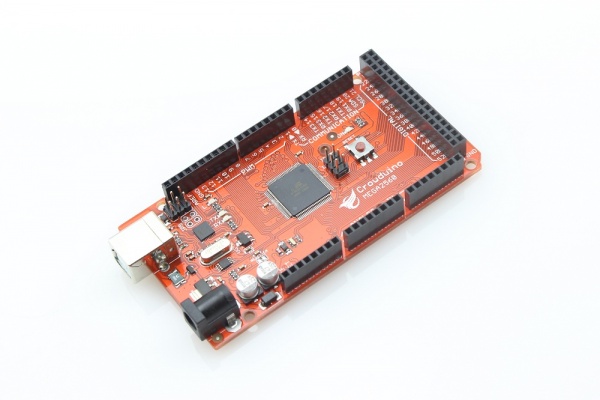

Crowduino Mega2560.JPG


100% compatible with Arduino Mega
54 Digital IO
16 Analog inputs
14 PWM outputs
4 Hardware serial ports (UART)
Compatible with most Arduino Duemilanove and Diecimila Shields
ICSP Header
Can be powered through a battery or through a AC to DC adaptor


Microcontroller: ATmega2560
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-20V
Digital I/O Pins: 54 (of which 15 provide PWM output)
Analog Input Pins: 16
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 256 KB of which 8 KB used by bootloader
Clock Speed: 16 MHz
