2.8 inch 320x240 SPI Serial TFT LCD Module Display With Driver IC ILI9341|With Touch Function¶
Description¶
This 2.8-inch color display module has a resolution of 320×240, supports 16BIT RGB 65K color display, presents rich color effects, and provides optional touch function. It uses an SPI serial bus interface and only requires a small number of IO ports to light up, which is convenient for integration and development. The module has a built-in SD card slot to facilitate the expansion of storage to meet diverse needs. In addition, the product is produced in accordance with military-grade process standards to ensure its long-term stability in various complex environments. We also provide comprehensive sample programs and underlying driver technology support to help developers get started quickly and easily realize project development and application.
For customized requirements (based on MOQ), please contact us at service@elecrow.com.
Model DLS23028B

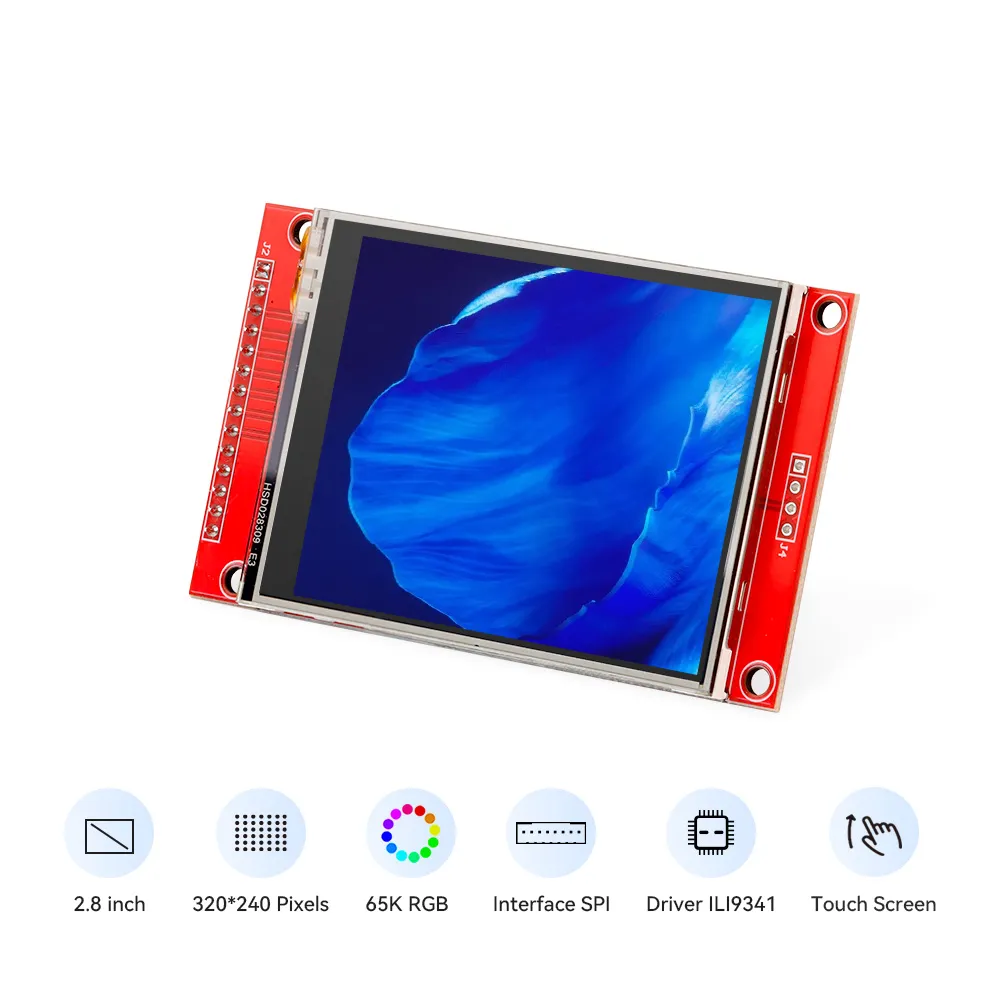

Feature¶
- 2.8-inch color screen, resolution of 320*240, supports 16BIT RGB 65K color display, rich display colors;
- Touch function is optional;
- Uses the SPI serial bus, only a few IOs are needed to light up the display;
- With SD card slot;
- Rich sample programs, providing underlying driver technology support.
Specification¶
| Size | 2.8 inch |
|---|---|
| Screen Type | TFT |
| Resolution | 320*240 (Pixel) |
| Color | RGB 65K color |
| Driver IC | ILI9341 |
| Interface | 4-wire SPI interface |
| VCC Power Voltage | 3.3V~5V |
| Logic IO Port Voltage | 3.3V(TTL) |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Active Area | 43.2x57.6(mm) |
| Module Size | 50x86(mm) |
