2.4 inch 320x240 SPI Serial TFT LCD Module Display With Driver IC ILI9341|With Touch Function¶
Description¶
This 2.4-inch color screen module is equipped with 320×240 resolution and 16BIT RGB 65K color display, rich colors, and optional touch function. It uses the SPI serial bus interface, and only a few IOs are needed to light up the display, which is easy to integrate and develop. The module comes with an SD card slot, it is convenient for expanding storage to meet diverse needs. At the same time, it is manufactured in accordance with military-grade process standards to ensure long-term stable operation without fear of complex environments. We also provide a wealth of sample programs and underlying driver technology support to help developers quickly get started and easily realize project development and application.
For customized requirements (based on MOQ), please contact us at service@elecrow.com.
Model DLS22024B
Feature¶

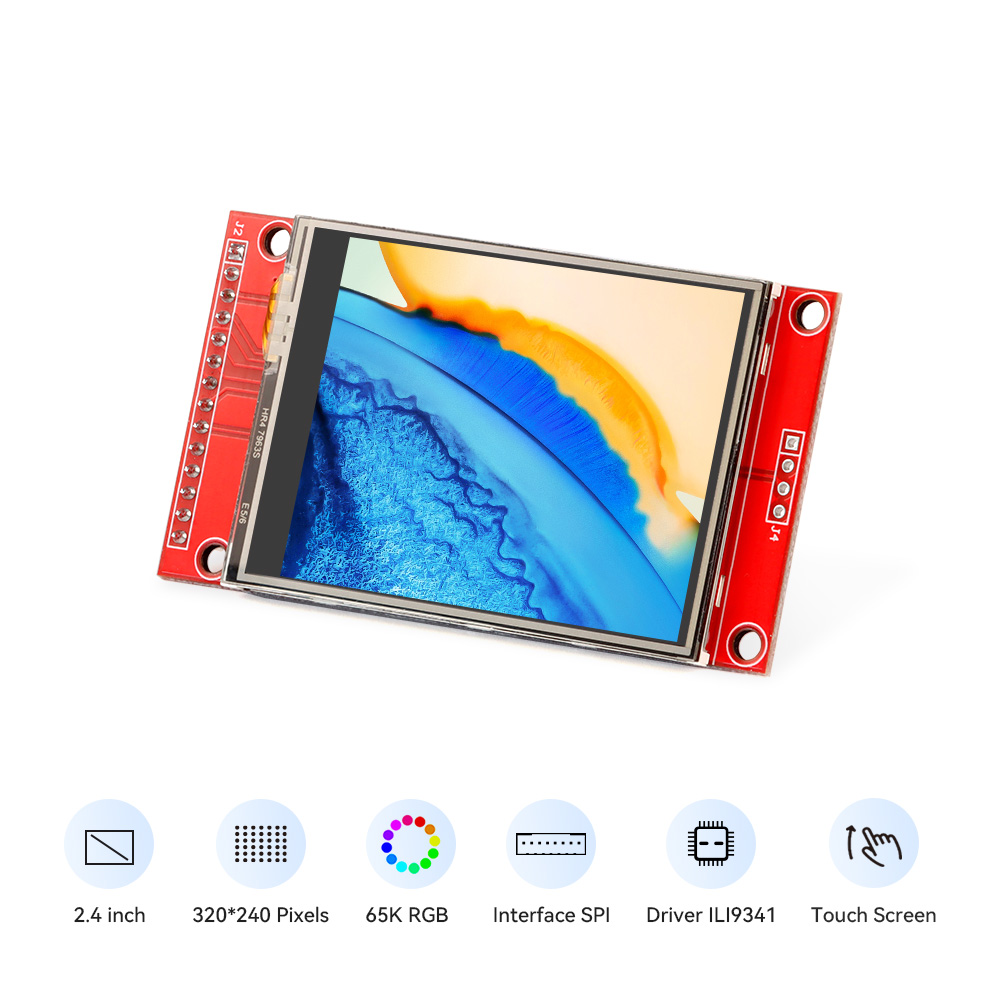

- 2.4-inch color screen, resolution of 320*240, supports 16BIT RGB 65K color display, rich display colors;
- Touch function is optional;
- Uses the SPI serial bus, only a few IOs are needed to light up the display;
- With SD card slot;
- Rich sample programs, providing underlying driver technology support.
Specification¶
| Size | 2.4 inch |
|---|---|
| Screen Type | TFT |
| Resolution | 320*240 (Pixel) |
| Color | RGB 65K color |
| Driver IC | ILI9341 |
| Interface | 4-wire SPI interface |
| VCC Power Voltage | 3.3V~5V |
| Logic IO Port Voltage | 3.3V(TTL) |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Active Area | 36.72x48.96(mm) |
| Module Size | 77.18x42.72(mm) |
Pin Definition
| Number | Pin Label | Description |
|---|---|---|
| 1 | VCC | 5V/3.3V power input |
| 2 | GND | Ground |
| 3 | CS | LCD chip select signal, low level enable |
| 4 | RESET | LCD reset signal, low level reset |
| 5 | DC/RS | LCD register / data selection signal,high level: register, low level: data |
| 6 | SDI(MOSI) | SPI bus write data signal |
| 7 | SCK | SPI bus clock signal |
| 8 | LED | Backlight control, high level lighting,if not controlled, connect 3.3V always bright |
| 9 | SDO(MISO) | SPI bus read data signal, if you do not need to the read function, you can not connect it |
| (The following is the touch screen signal line wiring, if you do not need to touch function or the module itself does not have touch function, you can not connect them) | ||
| 10 | T_CLK | Touch SPI bus clock signal |
| 11 | T_CS | Touch screen chip select signal, low level enable |
| 12 | T_DIN | Touch SPI bus input |
| 13 | T_DO | Touch SPI bus output |
| 14 | T_IRQ | Touch screen interrupt signal, low level when touch is detected |
Resources¶
How to buy¶
Please visit this page to purchase 2.4 inch 320x240 SPI Serial TFT LCD Module.
Support¶
If you have any problem about how to use it, you can connect to us at the bottom-right of bazzer or contact to techsupport@elecrow.com to get technology support.
