Lesson 12: Playing Local WAV Files from the SD Card

Applicable development board: CrowPanel Advanced 7 / 9 / 10.1-inch ESP32-P4 HMI AI Display development board

Model compatibility: The 7-inch, 9-inch, and 10.1-inch models are fully interchangeable in terms of hardware interfaces and software code; only their physical dimensions differ. Please select a model based on your actual display size and use case. No code modifications are required for this lesson.

1. Course Introduction

This lesson uses the Arduino IDE programming approach to read a WAV audio file from the SD card and play it through the speaker. After the program is flashed, when the development board is powered on and reset, the SD card will be mounted to the /sdcard directory, and the I2S audio output and amplifier will be initialized simultaneously. The program then automatically opens the /sdcard/huahai.wav file, validates the WAV file header, and performs streaming playback, outputting music through the speaker. This lesson integrates the SD card functionality from Lesson 08 and the I2S audio output from Lesson 11, and introduces WAV file format parsing for the first time. Through this experiment, learners will complete a full audio playback workflow validation, covering SD card file reading, WAV header information verification, and streaming playback of PCM data.

2. Learning Objectives

Upon completing this lesson, you should be able to:

  • Be able to explain the structure of the WAV file header (RIFF/WAVE/fmt/data) and the significance of validating it.
  • Be able to explain the workflow of streaming playback (chunked reading → amplification → I2S write).
  • Be able to complete compilation and flashing, and hear the WAV file from the SD card playing.
  • Be able to determine whether SD card reading and the audio chain are functioning properly based on the presence of playback logs and audio output.

3. Preparation

  • Hardware: One CrowPanel Advanced 7 / 9 / 10.1-inch ESP32-P4 HMI AI Display development board (with onboard SD card slot, I2S audio output and amplifier, and speaker); one MicroSD card formatted as FAT32, with huahai.wav (16 kHz, 16-bit, mono PCM WAV) placed in its root directory; one USB Type-C data cable supporting data transfer.
  • Prepare a microSD card and the onboard speaker.
  • Recommended WAV format: PCM, 16 kHz, 16-bit, mono or stereo.

Code reference: https://github.com/Elecrow-RD/CrowPanel-Advanced-7inch-ESP32-P4-HMI-AI-Display-1024x600-IPS-Touch-Screen/tree/master/example

4. Software Operation Steps

Double-click to open the Lesson 12 code (.ino file).

Open the WAV playback project

Configure the options below.

  • Board: ESP32P4 Dev Module
  • Core Debug Level: Info
  • Flash Frequency / Mode / Size: 80MHz / QIO / 16MB (128Mb)
  • Partition Scheme: 16M Flash (3MB APP/9.9MB FATFS)
  • PSRAM: Enabled
  • USB Mode: Hardware CDC and JTAG
  • Port: After connecting the USB data cable to the board's UART0, select the newly appeared COM port under "Tools → Port".

Standard upload configuration screenshot for Lesson 1

Following the library import steps explained in detail in Lesson 1, import the library files required by this project into the development environment to ensure that the relevant dependencies can be correctly located during compilation, thereby guaranteeing normal program operation.

P4_Arduino_01_Images_15

5. Hardware Operation Steps

Now that the code is ready, we need to flash the ESP32-P4 to see the results in action.

First, connect the Advance-P4 device to your computer host via a USB cable.

USB connect development board

Copy the WAV audio file to the root directory of the SD card, and ensure that the audio file's encoding format matches the playback format supported by the program; otherwise, it will not play correctly.

Converted WAV file

Insert the SD card with the power off; verify that the onboard speaker and card slot orientation are correct.

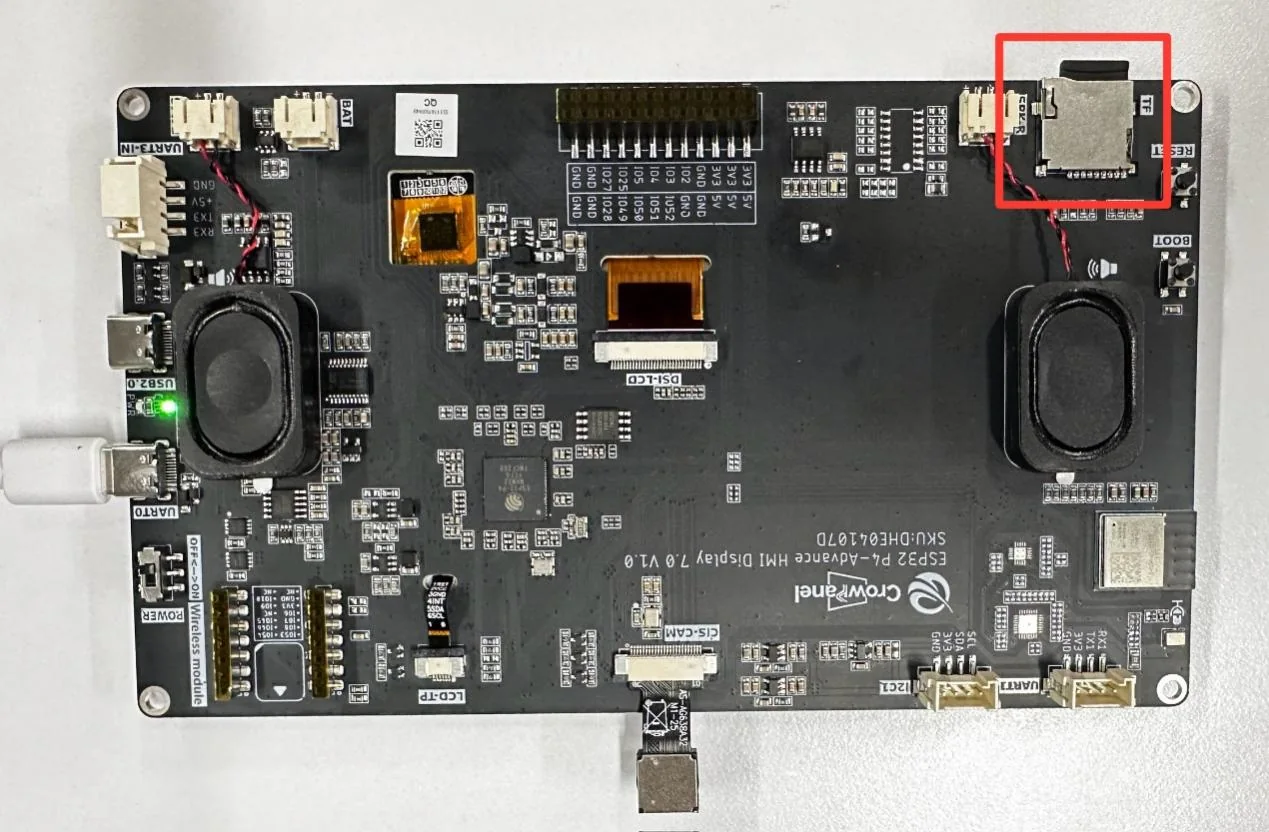

SD card slot location

Onboard speaker location

Before uploading the code, first select the upload configuration by following "4. Software Operation Steps".

Connect to UART0 and upload using the general configuration. Open the serial monitor to observe the mounting and validation logs, and wait for playback after confirming the file exists.

After the code is uploaded:

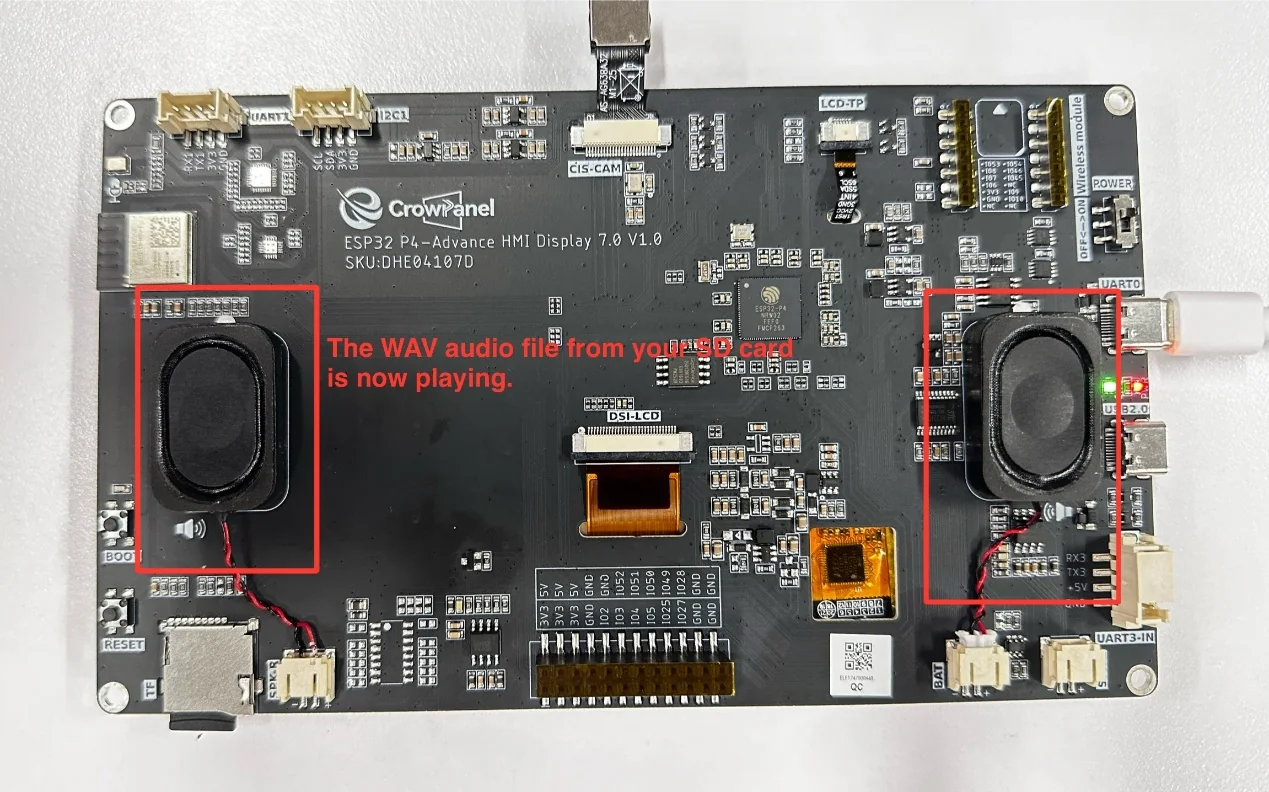

WAV playback result

6. Key Code Explanation

6.1 WAV Header Validation

WavInfo wav_info = {};
if (!read_wav_info(fh, &wav_info)) return ESP_ERR_INVALID_ARG;
i2s_spk.configureTX(wav_info.sample_rate,
                    wav_info.bits_per_sample,
                    wav_info.channels == 1 ? I2S_SLOT_MODE_MONO : I2S_SLOT_MODE_STEREO,
                    I2S_STD_SLOT_BOTH);

read_wav_info() parses RIFF/WAVE chunks rather than assuming a fixed 44-byte layout. It locates fmt and data, decodes little-endian fields, validates PCM format, channel count, bit depth, sample rate, and block alignment, then restores the original file position.

6.2 Chunked Playback

fseek(fh, wav_info.data_offset, SEEK_SET);
while (remaining > 0) {
  size_t bytes_to_read = min(remaining, AUDIO_BUFFER_SIZE);
  bytes_to_read -= bytes_to_read % wav_info.block_align;
  size_t bytes_read = fread(audio_buf, 1, bytes_to_read, fh);
  i2s_spk.write(audio_buf, bytes_read);
  remaining -= bytes_read;
}

Audio_play_wav_sd() configures I2S from the parsed WAV metadata, seeks to data_offset, reads frame-aligned chunks into a PSRAM-preferred buffer, checks short reads and write errors, streams them to i2s_spk, and finally disables audio power and frees resources.

7. Experimental Observations

  • No format error logs appear on the serial monitor, and the speaker plays the WAV file from the SD card.

WAV playback result

8. Common Issues and Troubleshooting

  • When the Invalid RIFF/WAVE header error is reported, reconvert the file to a PCM WAV.
  • When there is no sound, check the file path, SD card mounting, AUDIO_GPIO_CTRL, and I2S pins.
