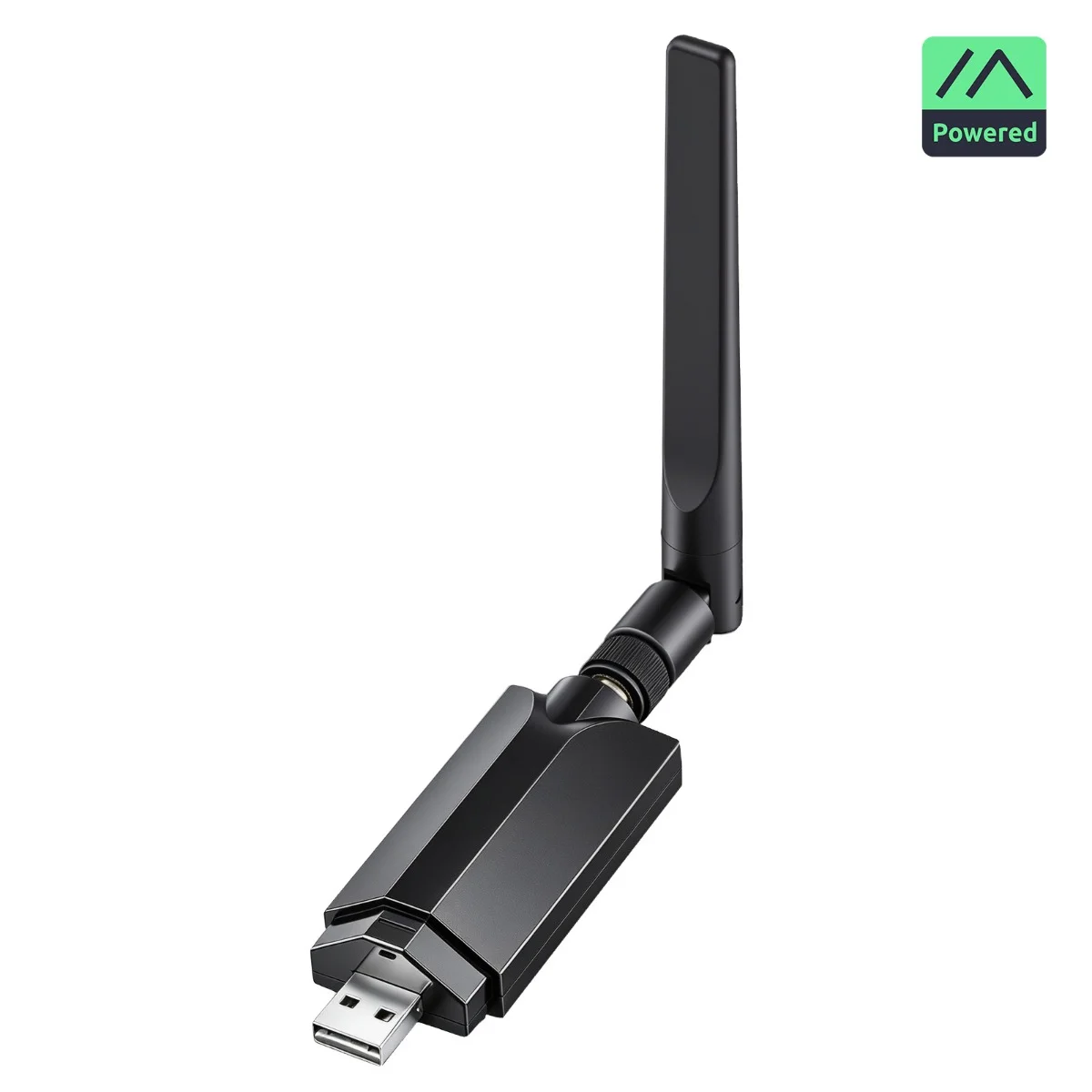

Meshstick USB-To-SPI SX1262 TCXO LoRa USB Stick¶
Product Overview¶
Meshstick is an open-source LoRa Mesh USB adapter based on the CH341A and SX1262. It features a USB plug-in design, an integrated TCXO, and USB bus power, requiring no external power supply. The device can connect to Linux, macOS, or Windows computing devices and work with meshtasticd as a Meshtastic network node. It supports web-based management, message sending and receiving, and network monitoring, making it suitable for LoRa relay node and regional coverage gateway deployments.
Specifications¶
| Parameter | Specification |
|---|---|
| Product Model | Meshstick USB-To-SPI SX1262 TCXO LoRa USB Stick |
| SKU | LMM15202D |
| Brand | Elecrow |
| Interface | USB 2.0 |
| Bridge Chip | CH341A |
| LoRa Chip | SX1262 |
| Operating Frequency Band | EU868 MHz / US915 MHz |
| Maximum Transmit Power | +22 dBm |
| Antenna Connector | SMA external antenna connector |
| Enclosure | Translucent black plastic enclosure |
| Power Supply | USB bus-powered, no external power supply required |
| Dimensions | 88 x 30 x 18 mm, excluding antenna |
| Weight | 36.6 g, including antenna |
| Package Contents | 1 x Meshstick; 1 x antenna; 1 x quick start guide |
Product Instructions¶
Resources¶
Support¶
If you encounter any issues while using the service, you can contact us via the social media links in the bottom-right corner of elecrow or send an email to techsupport@elecrow.com for technical support.
